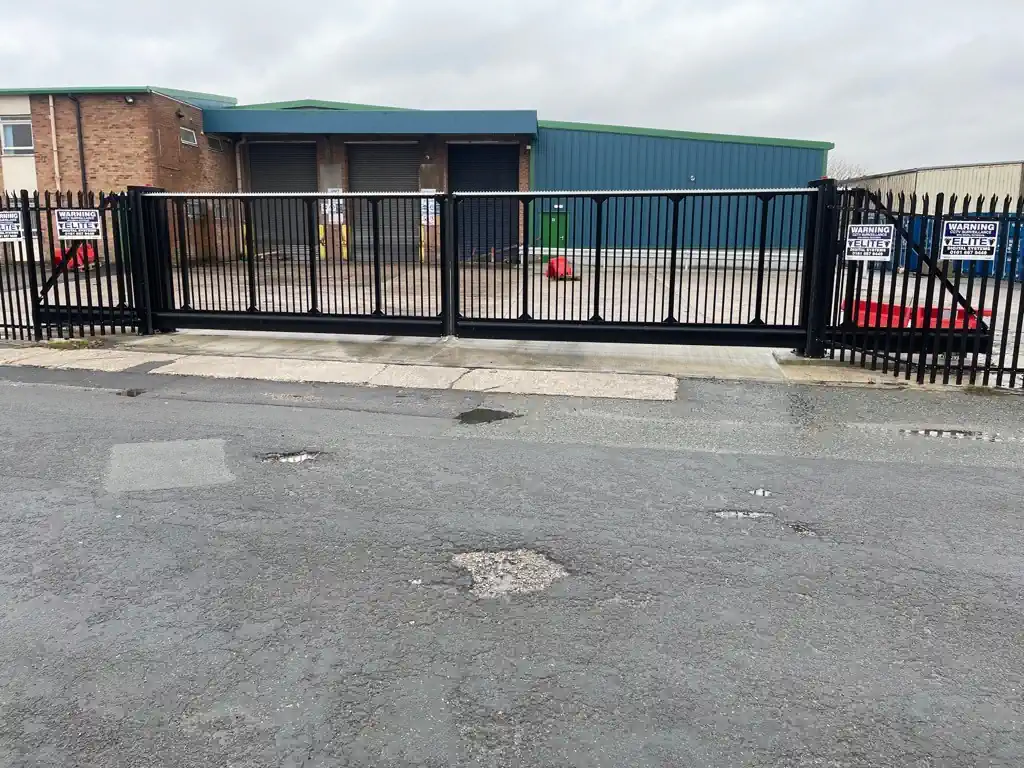

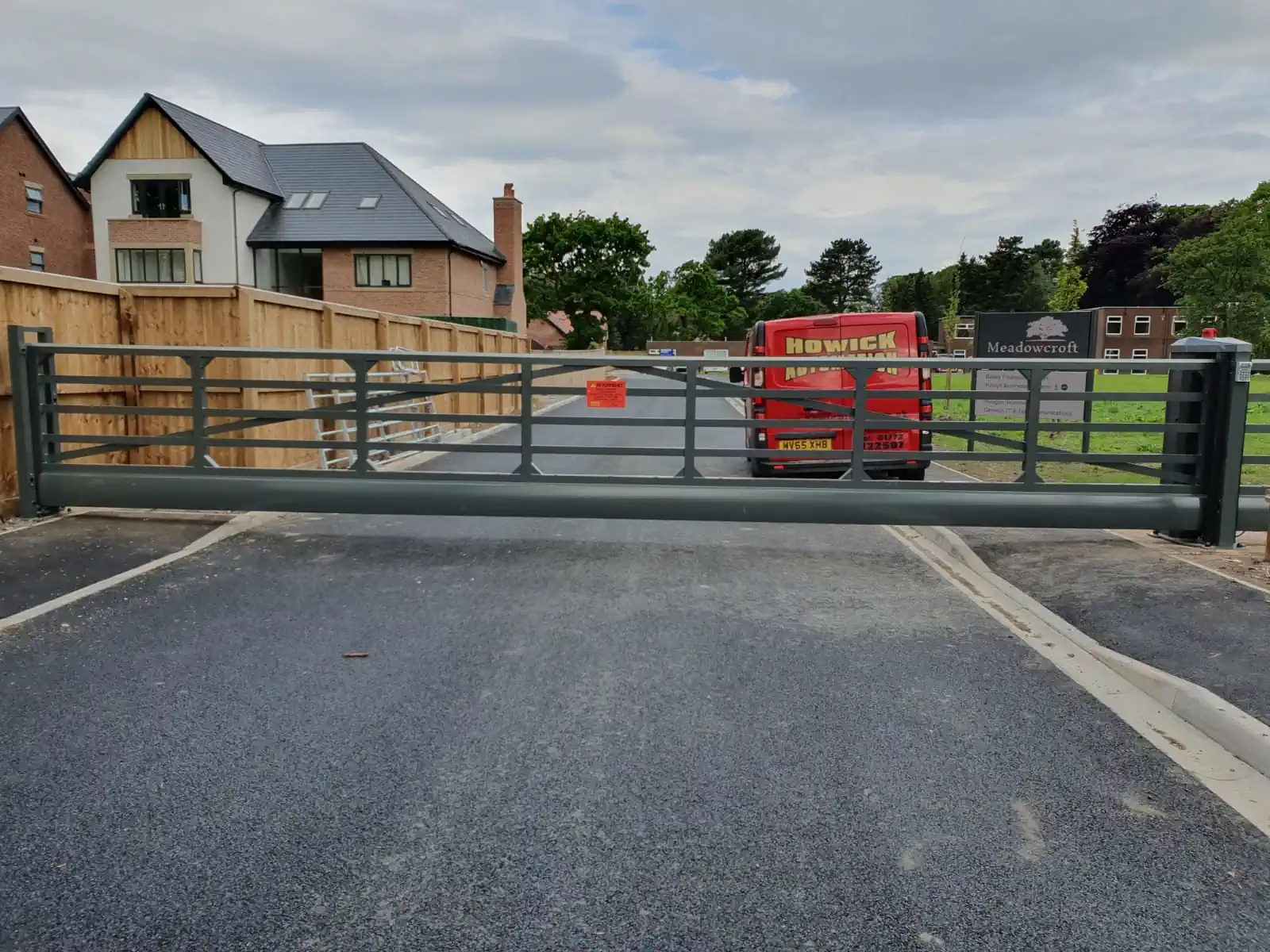

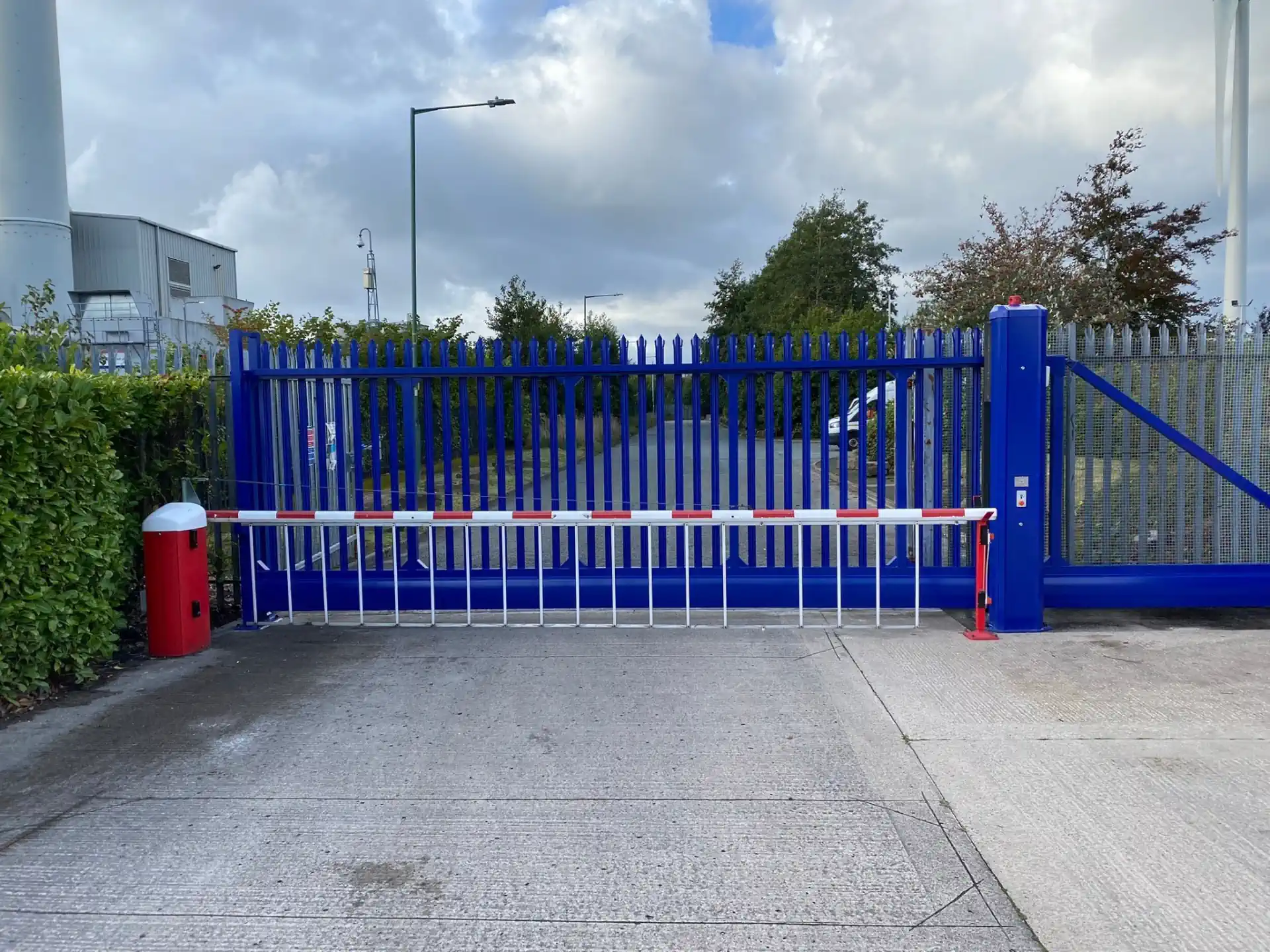

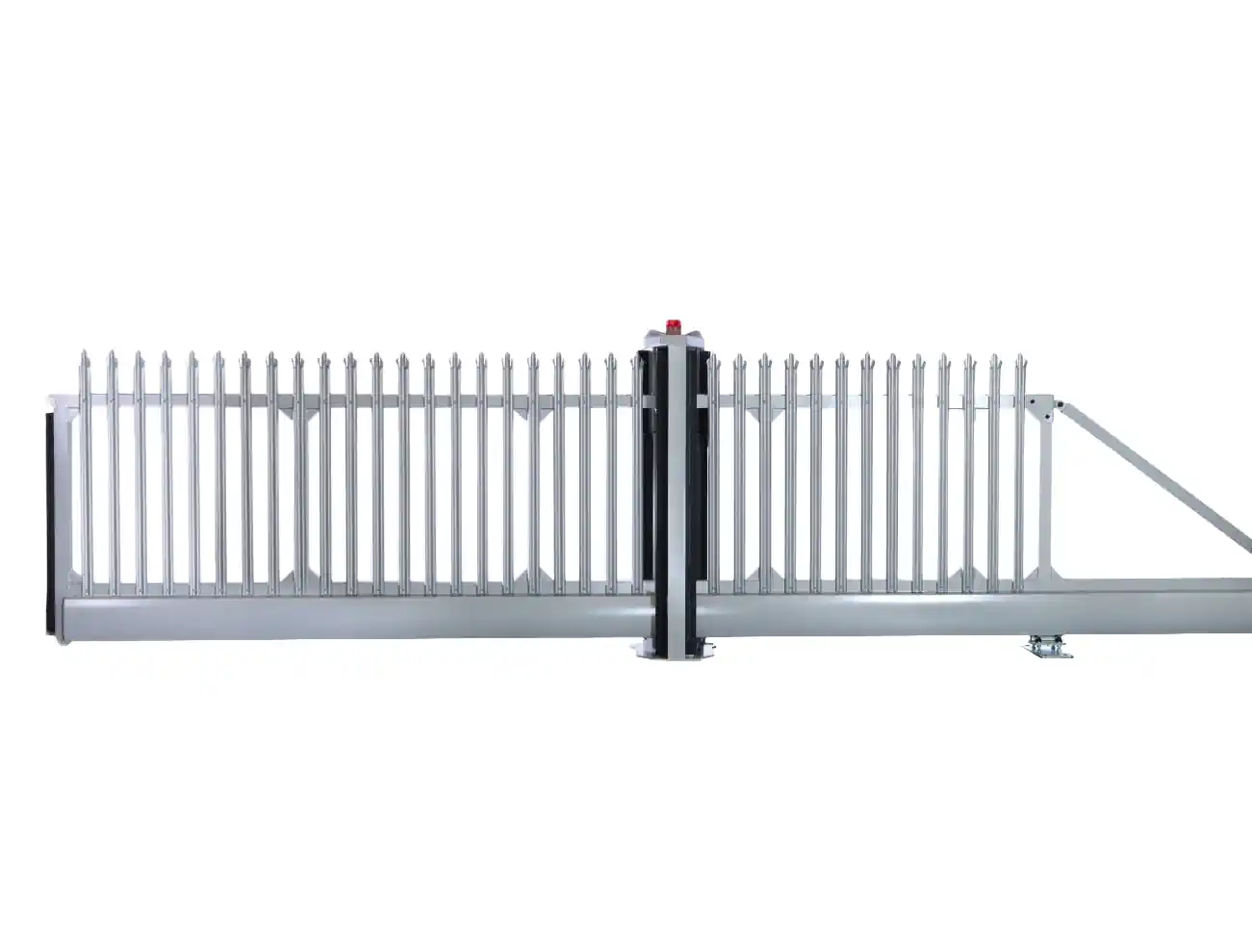

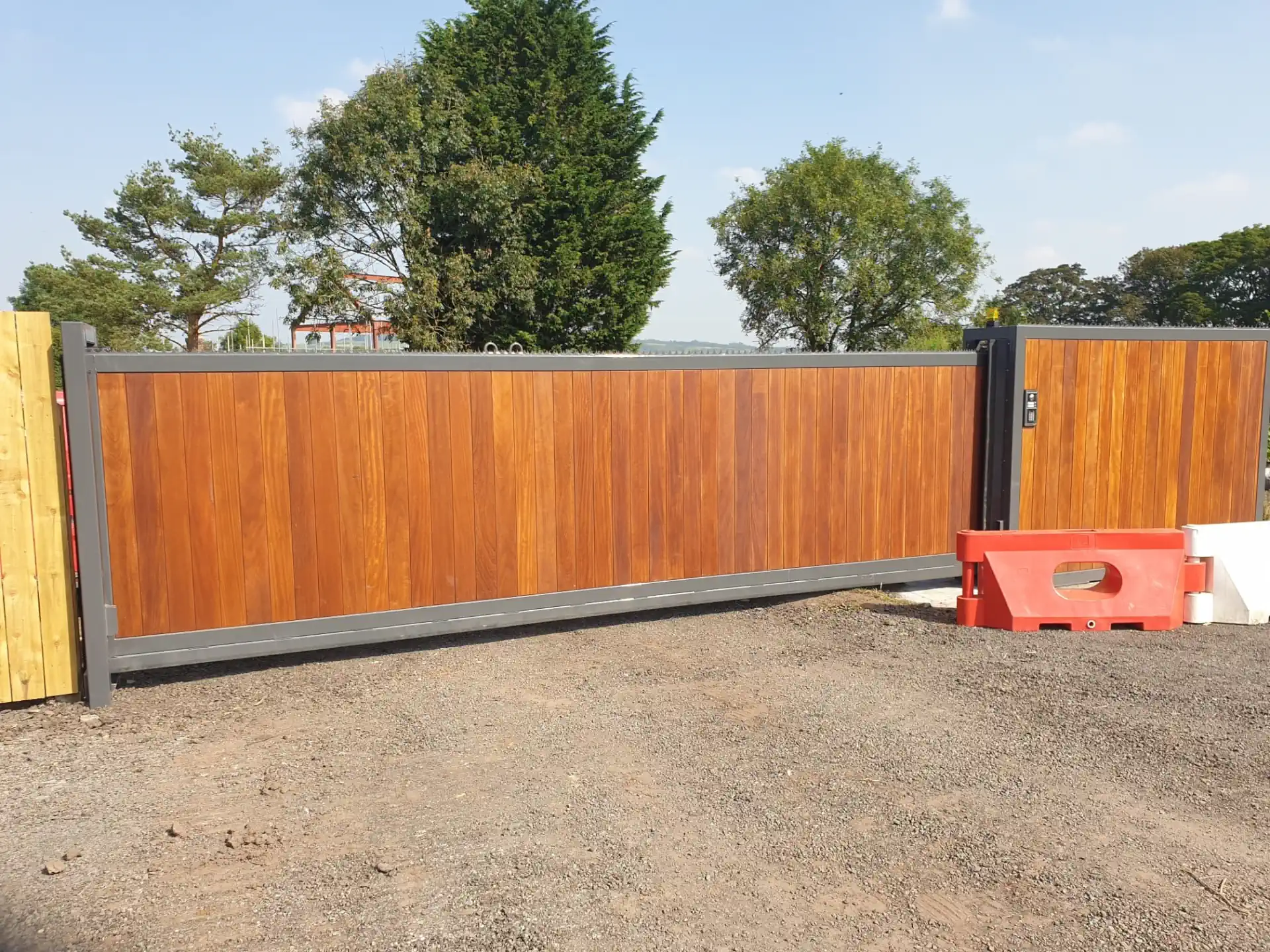

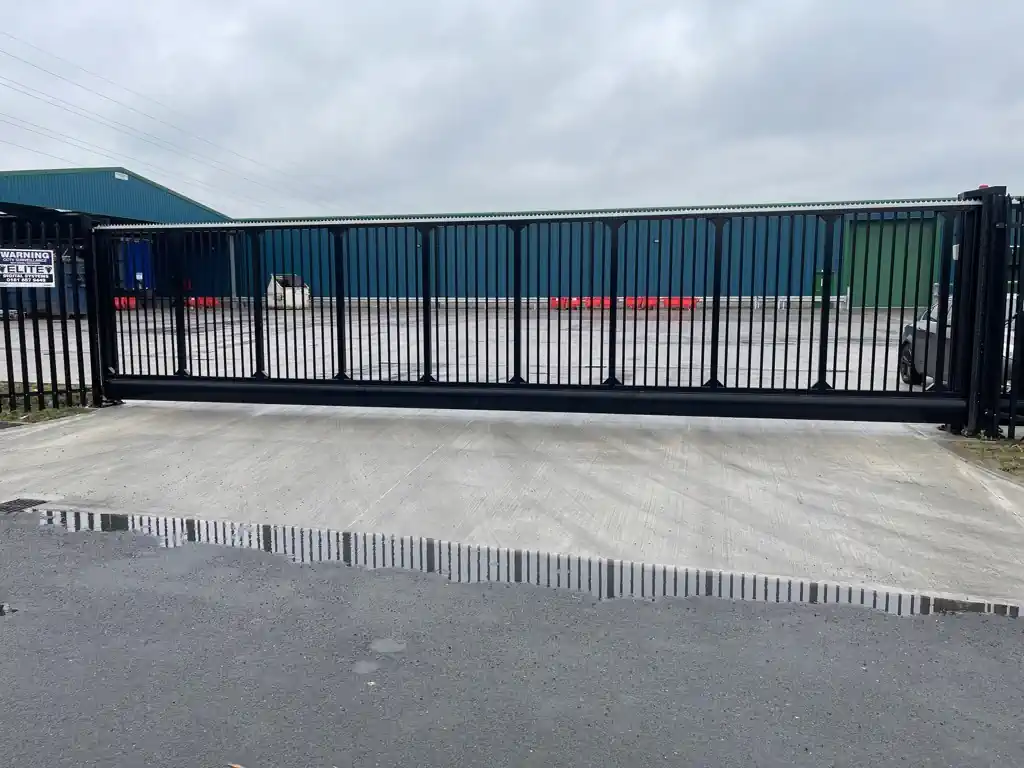

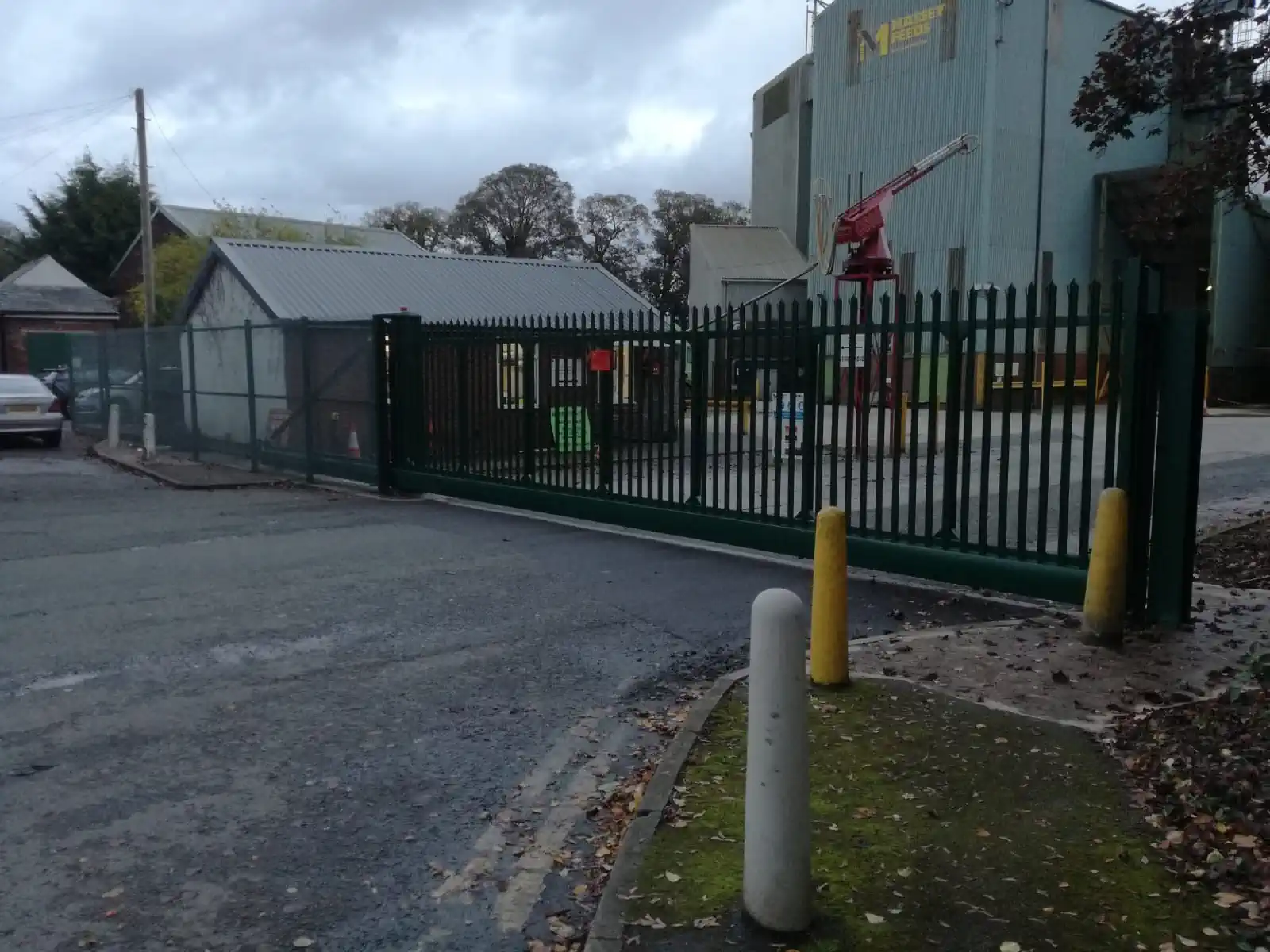

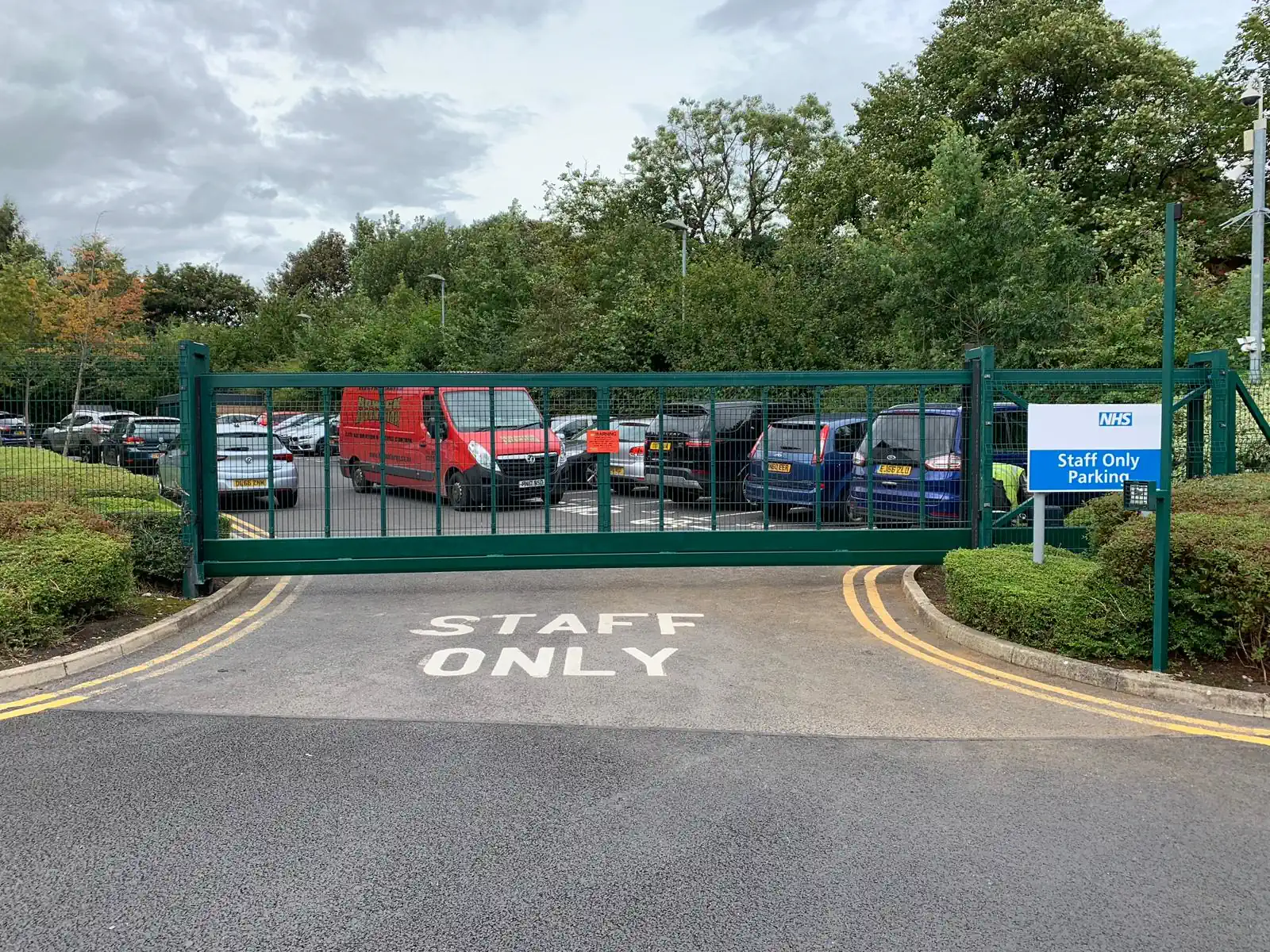

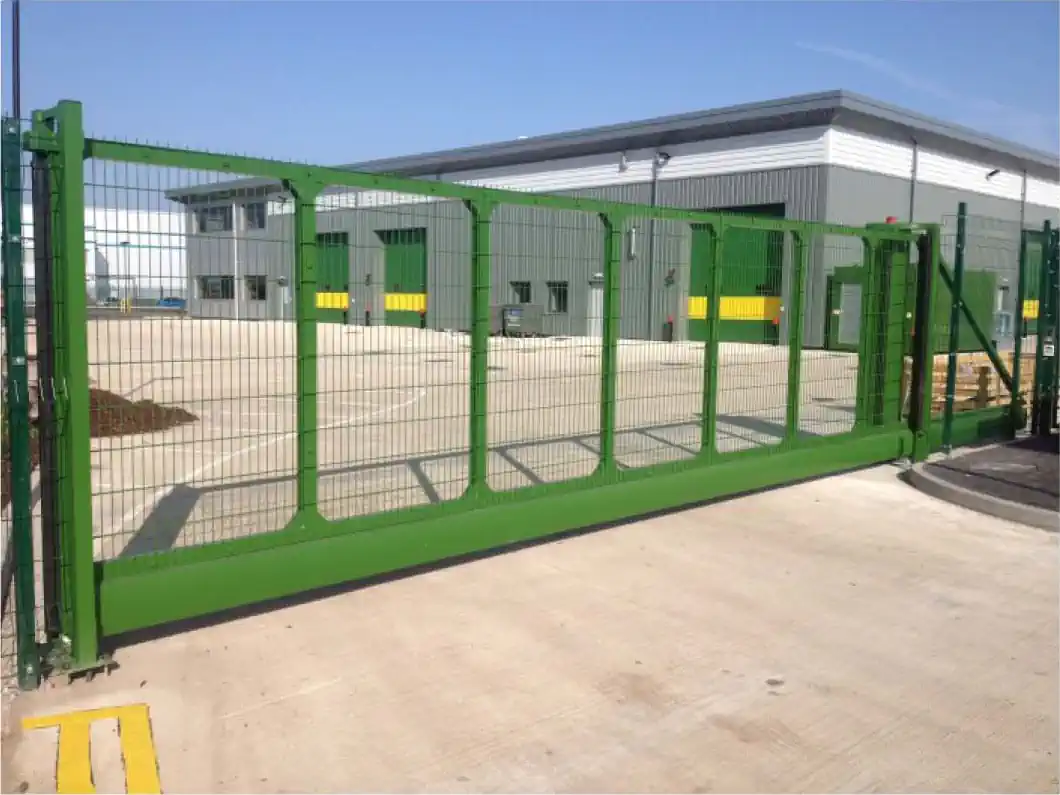

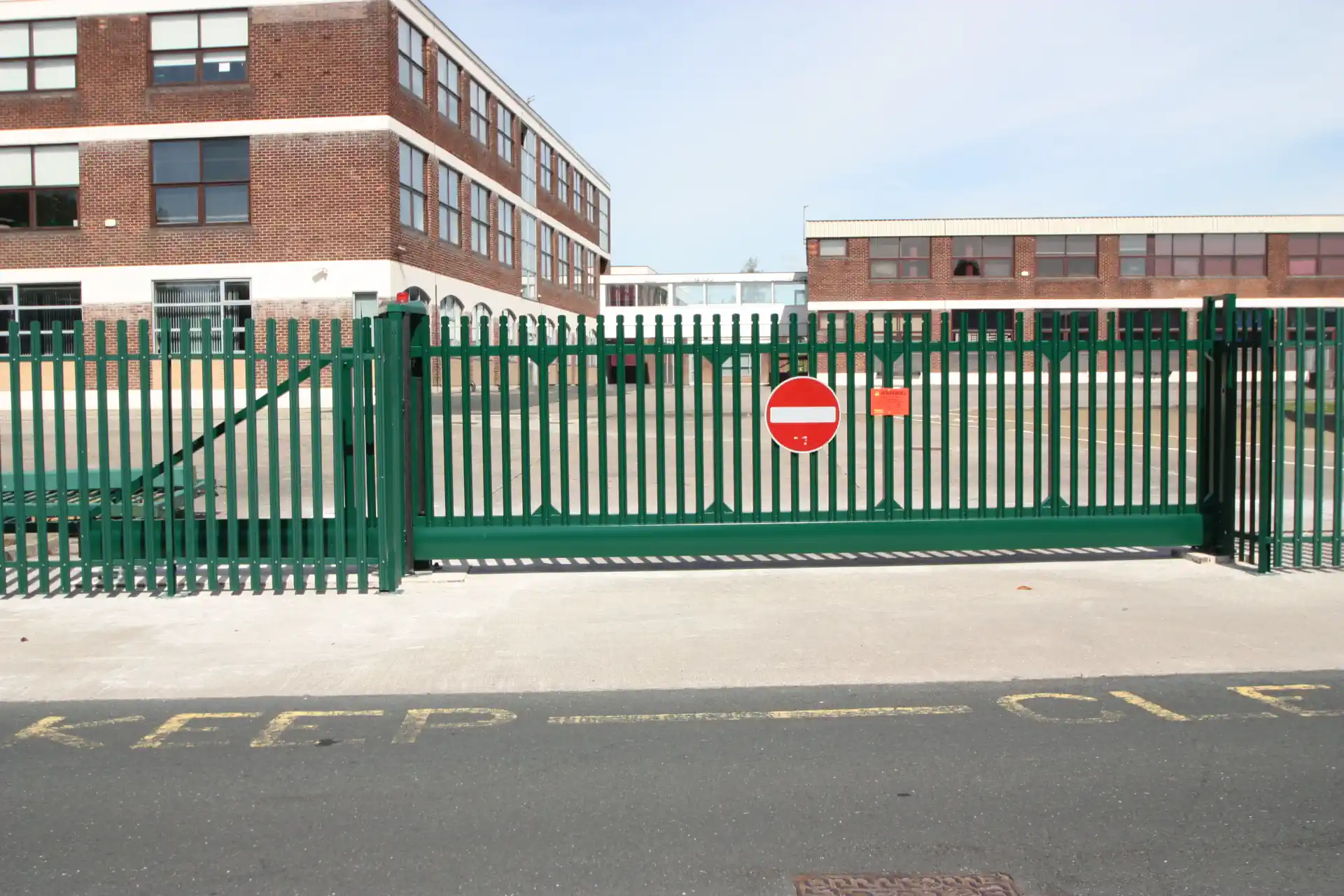

The HA9000A Automatic Cantilever Sliding Gate is a high-performance cantilever system designed for large openings, delivering secure, efficient and fully compliant perimeter protection.
The HA9000A Automatic Cantilever Sliding Gate is designed in accordance with BS/EN 12453, ensuring full compliance with current automated gate safety standards.
It is equipped with dual-height photocells and six category 3 monitored safety edges, providing a high level of operational safety.
The gate is controlled via a purpose-built controller with a single-phase supply and integrated frequency converter driving a three-phase motor.
It supports a wide range of programmable modes including timed closure, free exit and entry loops, as well as pedestrian access and airlock system integration.

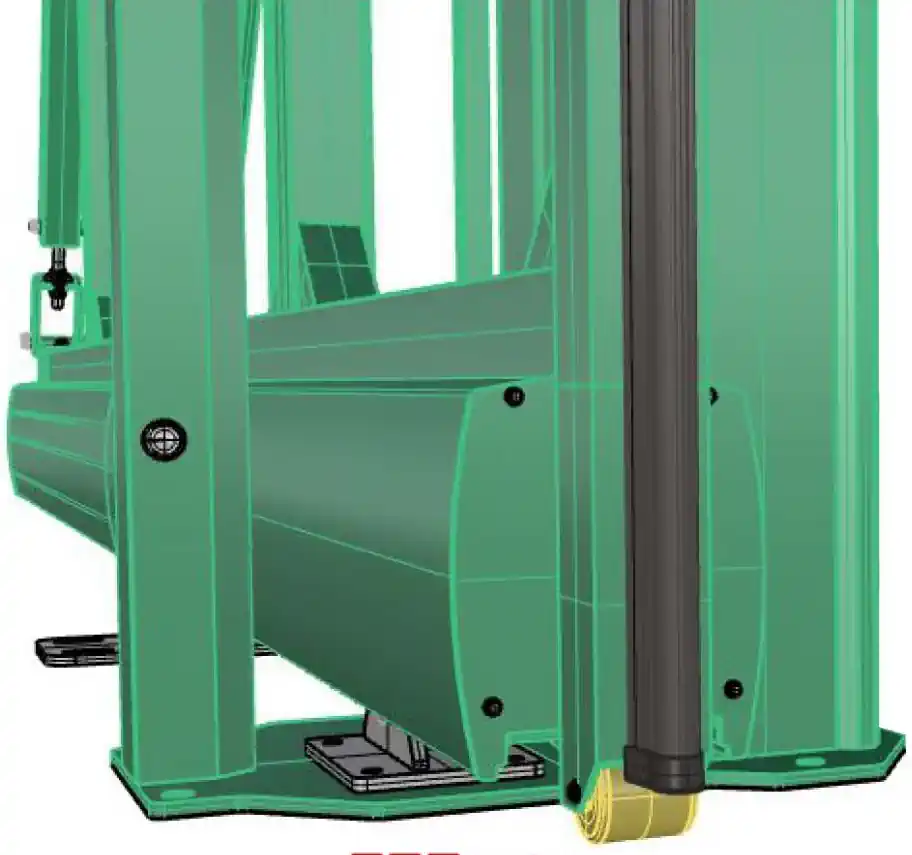

Movement is controlled using a rack and pinion system monitored by an encoder, ensuring precise, smooth and reliable operation.
This robust mechanism provides consistent performance, even in high-usage industrial environments.
Constructed from high-grade aluminium, the gate is rigid, corrosion-resistant and built for long-term use.

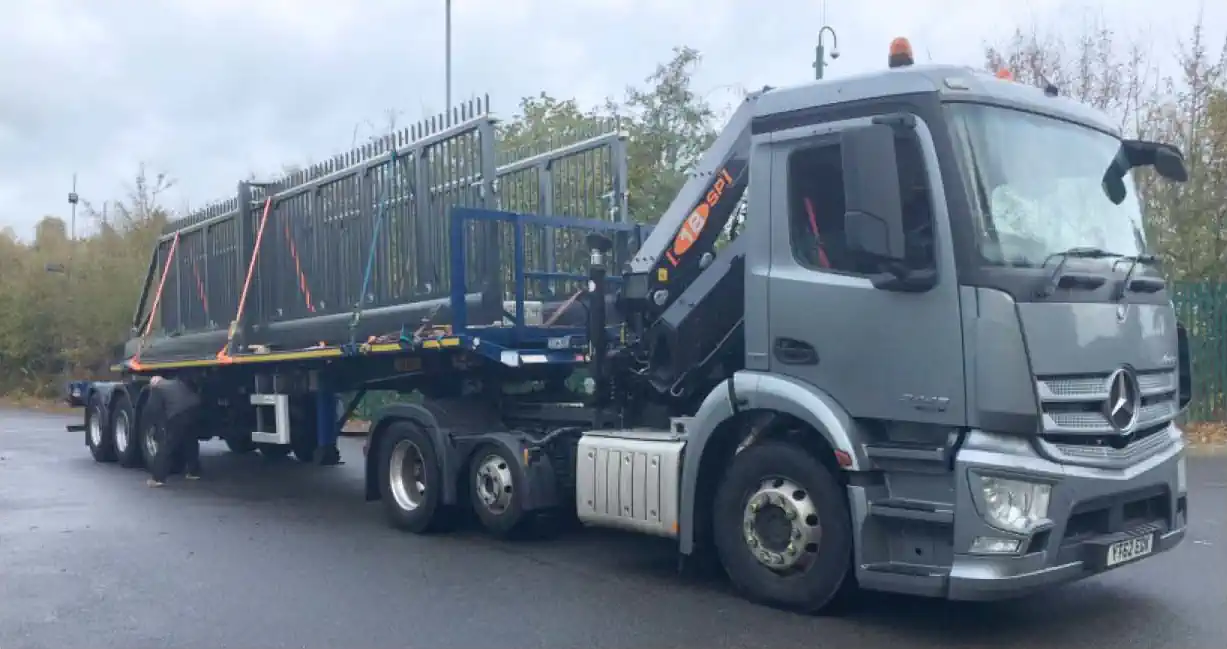

Delivered fully assembled on a crane-equipped vehicle, it is ready to bolt down and commission, minimising disruption and installation time on site.
Operating Speed:
4-6 Seconds Per Metre (Dependant on Version)
Duty Cycle:
100% Heavy Industrial Usage
Specification:
CE Approved, TUV Approved, BS/EN 12453
Power Requirements:
Single Phase 230v 50Hz 10 Amp
Colours:
All RAL Colours Available
Maximum Span:
12 Metres Drive-Through
Maximum Height:
2.4 Metres (Max Width 12m) / 3.0 Metres (Max Width 10m)

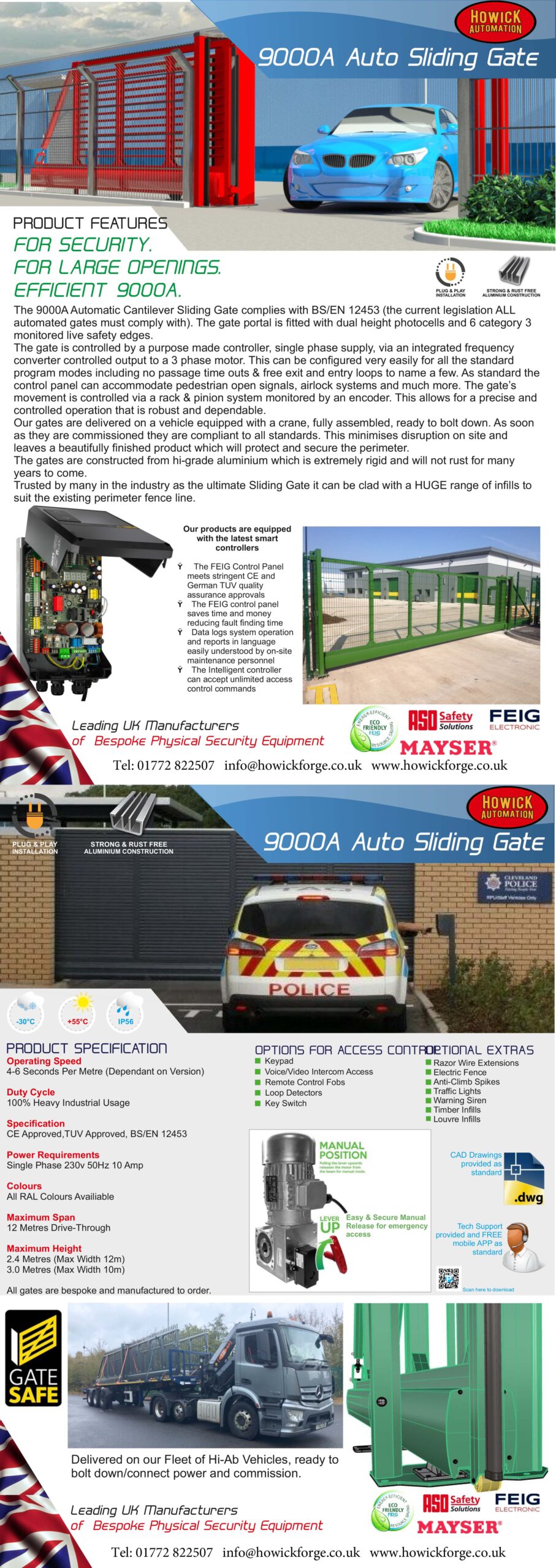

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA9000A Automatic Cantilever Sliding Gate is designed for sites requiring secure, high-capacity access control across large openings. Its cantilever design eliminates the need for ground tracks, ensuring reliable operation in all weather conditions.
With advanced control features and intelligent system integration, the gate supports a wide range of access control methods while maintaining smooth and precise movement.
Its robust aluminium construction, combined with fast installation and full compliance, makes it a dependable solution for industrial and commercial perimeter security.
Covers drive-through widths up to 12 metres.
Compatible with multiple access control systems and automation modes.
Delivered fully assembled for quick on-site setup.
