The HA9600 Automatic Swing Gate is a high-performance access control solution designed for secure, reliable operation across wide drive-through entrances.
The HA9600 Automatic Swing Gate complies with BS/EN 12453, ensuring full adherence to current automated gate safety regulations.
It is supplied as standard with dual-height photocells and category 2/3 monitored safety edges for enhanced operational safety.
The gate is designed to be cast into the ground as standard, with an optional bolt-down installation available where required.
Its integrated control panel is housed within the main column, creating a clean, streamlined appearance without external control boxes.
The system uses a purpose-built controller with single-phase input and an integrated frequency converter driving a three-phase motor.
This allows easy configuration of multiple operating modes, including timed closure, free entry/exit loops and pedestrian access control.
The HA9600 is supplied fully assembled and ready for installation, significantly reducing on-site setup time and disruption.
Once commissioned, the system is fully compliant and designed to deliver long-term, low-maintenance performance in demanding environments.
Specification:
CE Approved BS/EN 12453
Maximum Span:
8 Metres Drive-Through
Maximum Height:
3.0 Metres
Finish:
Powder Coated (Galvanised Optional)
Power Requirements:
Single Phase 240V, 50Hz, 10 Amps
Drive Motor:
3 Phase Motor & Wormed Gearbox
Duty Cycle:
100% Continuous Duty Cycle Rating
Operation Time:
4 – 10 Seconds (Dependant on Version)

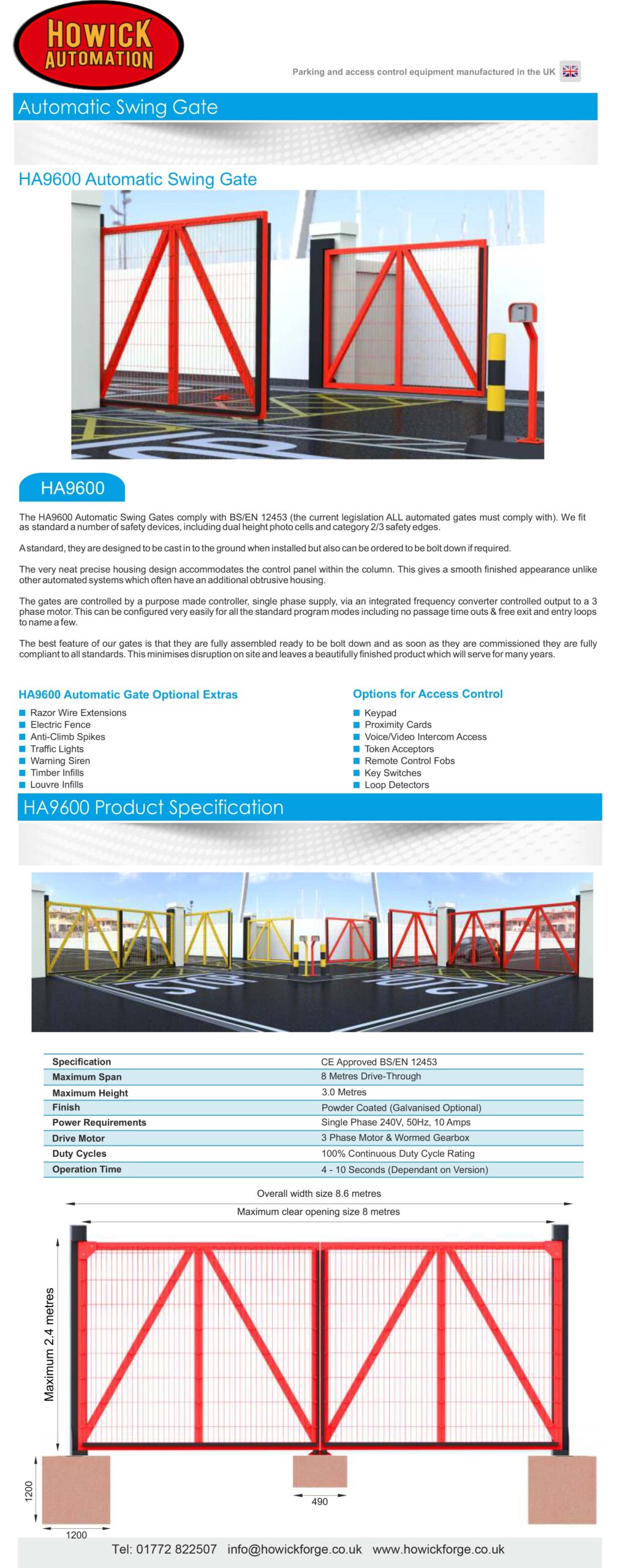

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA9600 Automatic Swing Gate is designed for sites requiring reliable and secure perimeter access control across wide openings. Its robust construction and automated operation make it suitable for commercial, industrial and high-security environments.
With advanced control systems and multiple configurable operating modes, the gate offers flexibility for a wide range of access requirements while maintaining smooth and precise movement.
Supplied fully assembled and ready for installation, the system ensures minimal disruption on site and delivers long-term dependable performance.
Fully compliant with BS/EN 12453 safety standards.
Control system housed within the main column for a neat finish.
Supplied fully assembled for reduced on-site setup time.
