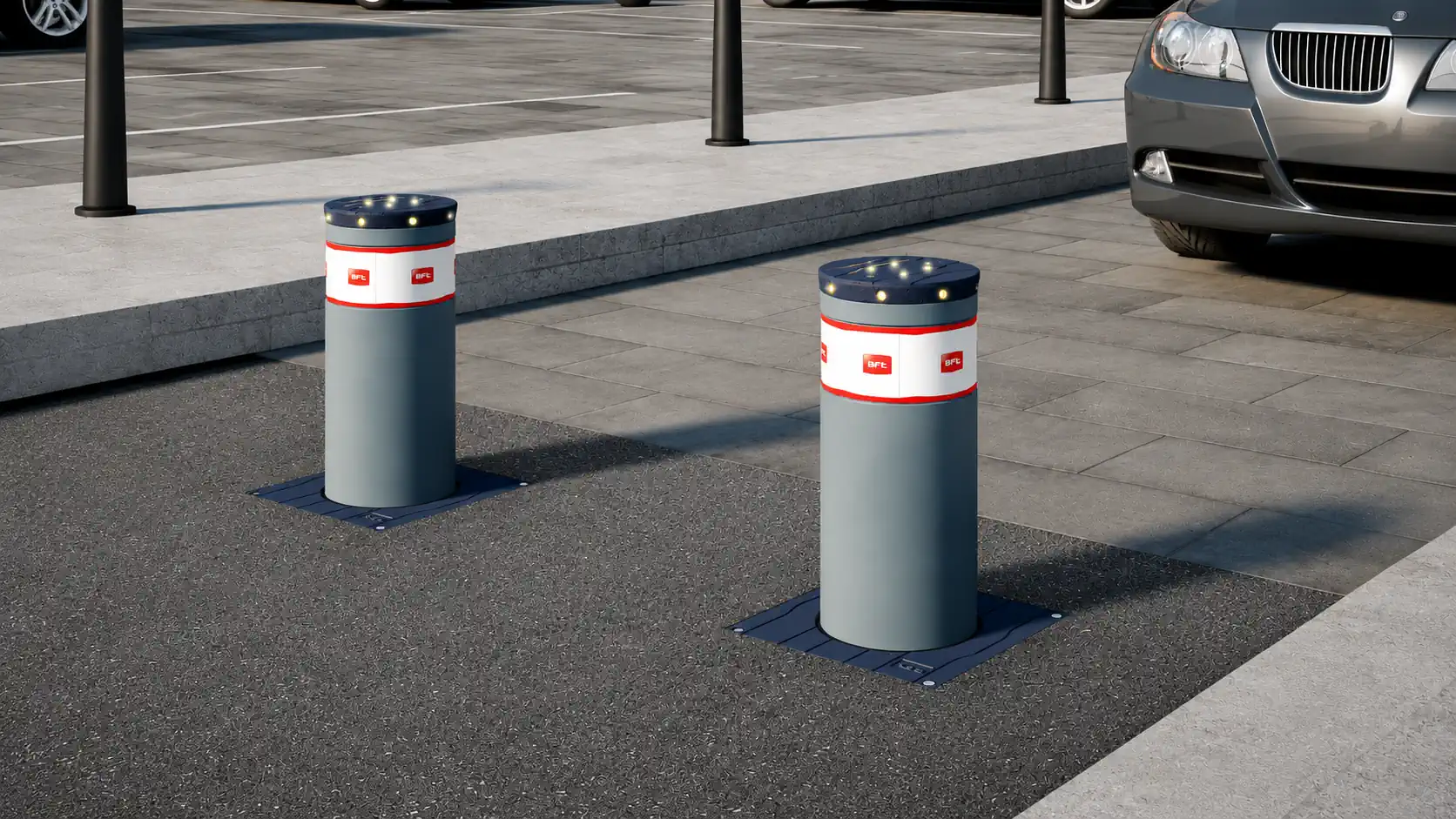

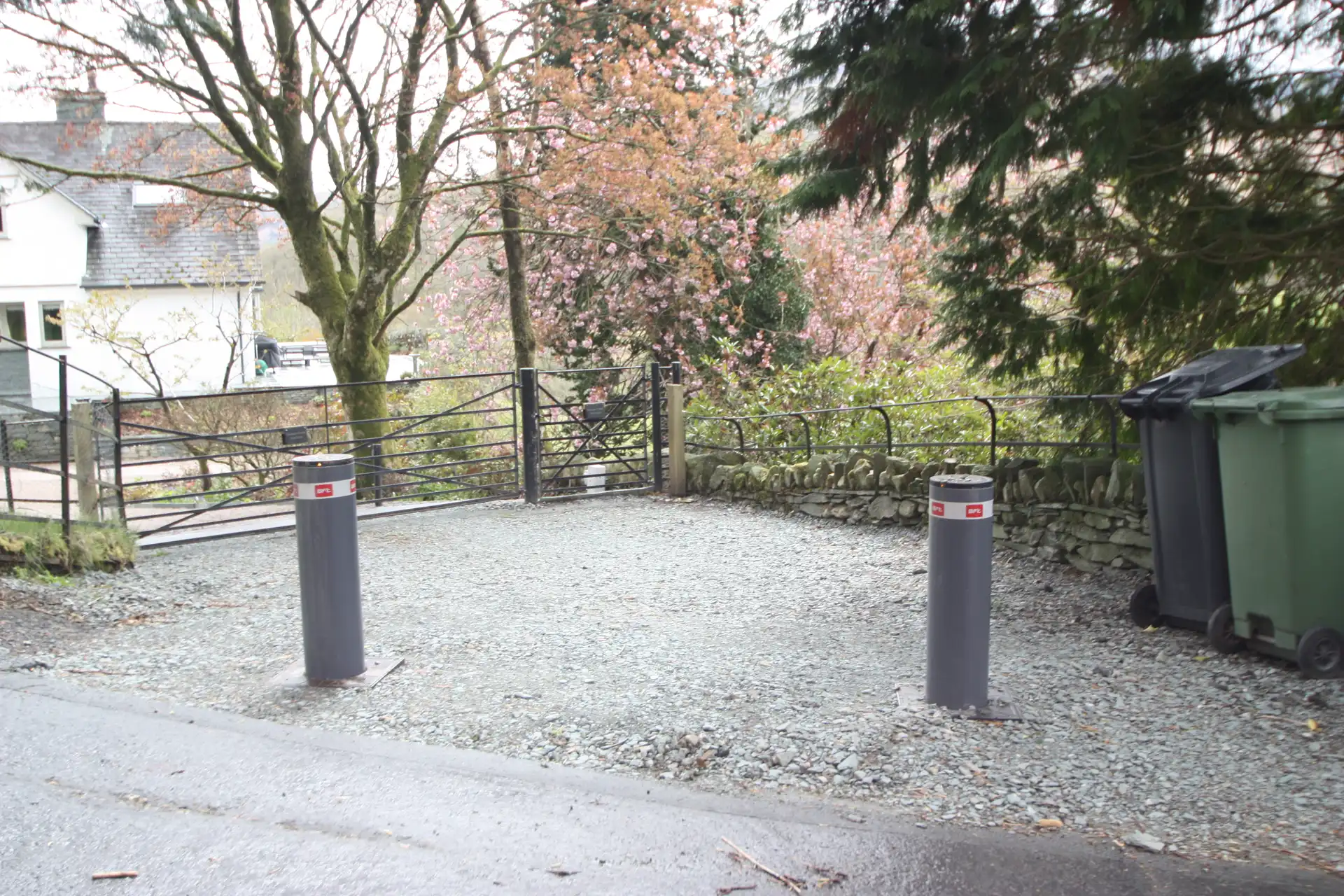

The RANCH D is a high-security fixed bollard designed for permanent access prevention, providing robust protection for sensitive and high-risk environments.
The RANCH D fixed bollard is designed for long-term access prevention, making it ideal for protecting sensitive or restricted areas.
Its fixed design ensures continuous physical protection without the need for moving components or power supply.
The RANCH D can be integrated with the XPASS B 800 automatic anti-terrorism bollard to create a complete perimeter protection system.
This combination allows for controlled access points while maintaining a high level of security across the entire site.

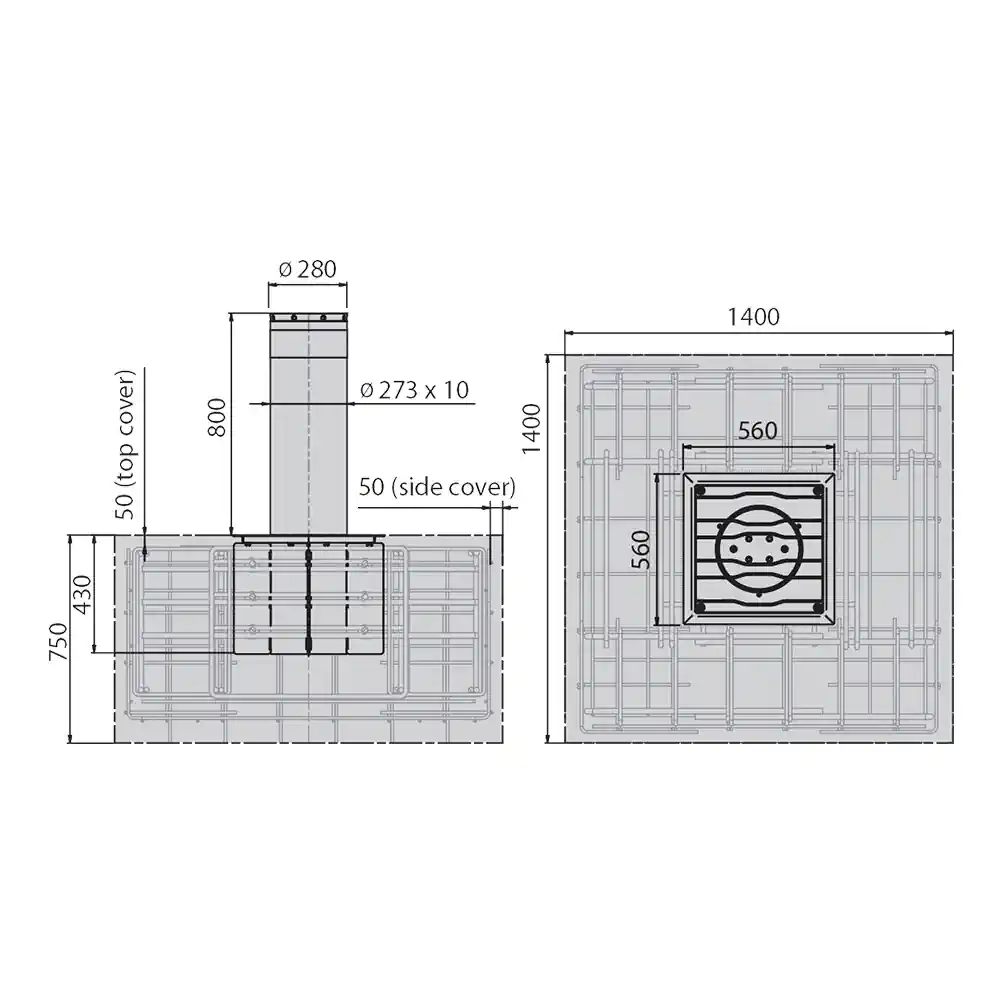

With a height of 800mm and a diameter of 273mm, the RANCH D provides a strong physical deterrent against vehicle impact.
All versions are equipped with an LED light crown for improved visibility and are available in painted steel (RAL 7015) or stainless steel finishes.
Suitable for a wide range of environments, the RANCH D can be deployed across commercial, industrial and high-security locations.
Its durable construction ensures long-term performance even in harsh outdoor conditions.
Shaft height:
800mm
Shaft diameter:
273mm
Shaft thickness:
10mm
Shaft treatment:
AISI 304 or AISI 316 stainless steel
Breaking resistance:
667000J
Impact resistance:
25000J
Antiterrorism standard:
PAS 68:2010 7500/50/N2
Shaft height:
800mm
Shaft diameter:
273mm
Shaft thickness:
10mm
Shaft treatment:
RAL 7015 painted steel
Breaking resistance:
667000J
Impact resistance:
25000J
Antiterrorism standard:
PAS 68:2010 7500/50/N2
Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The RANCH D Fixed Bollard provides a robust and reliable solution for permanent vehicle access prevention in sensitive and high-security environments. With a 273mm diameter steel shaft, 10mm wall thickness, and tested impact resistance, it delivers a strong physical barrier designed to protect defined areas from unauthorised vehicle access.
Equipped with an LED light crown and available in painted steel (RAL 7015) or stainless steel finishes, the RANCH D combines security performance with a durable and professional appearance. It can also be integrated with the XPASS B800 automatic anti-terrorism bollard to create a coordinated perimeter protection system for critical sites.
PAS 68:2010 tested fixed bollard with 25,000J impact resistance.
Robust fixed design providing continuous vehicle access prevention without power requirements.
Designed to work alongside the XPASS B800 automatic bollard for enhanced site security.
