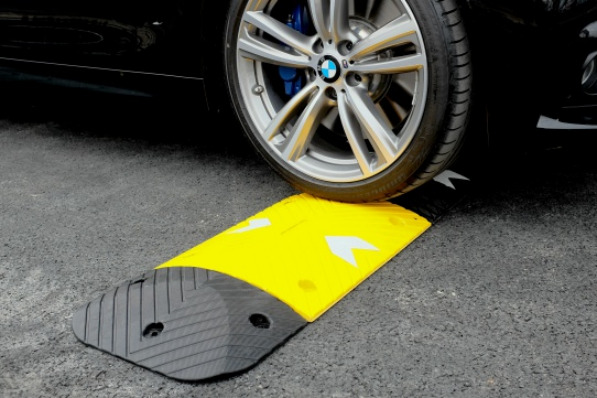

The HA5750 and HA5775 Speed Ramps are durable traffic calming solutions manufactured in the UK, designed to reduce vehicle speeds and improve safety across commercial, industrial, and public environments. Manufactured from recycled PVC, these modular speed ramps provide a reliable, high-visibility solution for managing vehicle flow in areas where pedestrian safety is a priority.
The HA5750 and HA5775 Speed Ramps are designed to slow vehicles and improve traffic management in car parks, industrial estates, private roads, schools, retail parks, and other controlled access areas.
Available in 50mm and 75mm heights, the modular interlocking system allows installations to be configured to suit a variety of site layouts. The black and yellow finish, combined with embedded reflectors and a non-slip surface, provides excellent visibility and driver awareness.
Manufactured from durable recycled PVC, the HA5750 and HA5775 Speed Ramps are built for long-term performance with minimal maintenance. The modular design enables quick installation and simple extension or replacement of individual sections.
The 75mm model also features an integral cable channel, allowing hoses or cables to pass safely beneath the ramp, making it ideal for temporary traffic management applications.

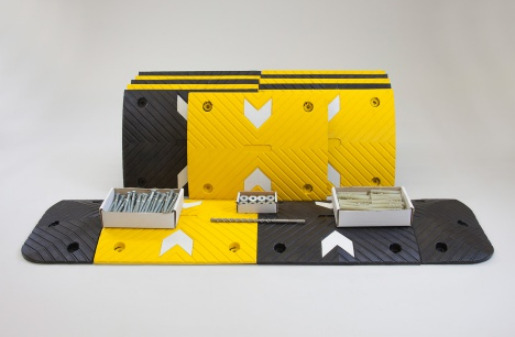

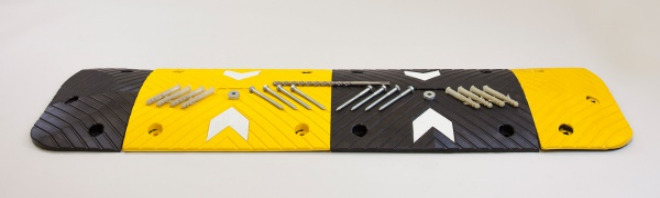

The ramps are supplied with universal fixings for installation onto concrete or tarmac surfaces. Pre-drilled fixing points and the interlocking design provide a secure and stable installation, while the modular construction makes the system easy to adapt as site requirements change.
Designed to provide effective traffic calming, the 50mm ramp encourages vehicle speeds of approximately 15–20 mph, while the 75mm version reduces speeds to around 5–10 mph.
The textured non-slip surface, embedded reflectors, and high-visibility black and yellow finish help maximise driver awareness in both daytime and low-light conditions.
Material:
Recycled PVC
Available Heights:
50mm and 75mm
Speed Reduction:
50mm: Approx. 15–20 mph
75mm: Approx. 5–10 mph
Section Width:
500mm
Surface Finish:
Non-slip grooved texture
Visibility Features:
Black and yellow with embedded reflectors
Cable Channel:
Integral cable channel (75mm model only)
Installation:
Universal fixings supplied for concrete or tarmac
Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA5750 and HA5775 Speed Ramps provide an effective and dependable solution for reducing vehicle speeds and improving safety wherever controlled traffic movement is required. Their durable recycled PVC construction, modular interlocking design, and highly visible finish make them suitable for a wide range of commercial, industrial, and public sector environments.
With integrated reflectors, a non-slip surface, supplied universal fixings, and an optional cable channel on the 75mm model, these speed ramps offer a practical combination of performance, durability, and ease of installation. Whether used as part of a permanent traffic calming scheme or a temporary traffic management solution, the HA5750 and HA5775 range delivers reliable long-term performance with minimal maintenance requirements.
Heavy-duty steel construction designed for long-term performance in high-traffic areas.
Bright yellow finish ensures clear driver awareness and improved site safety.
Interlocking sections allow adaptable layouts to suit any traffic environment.
