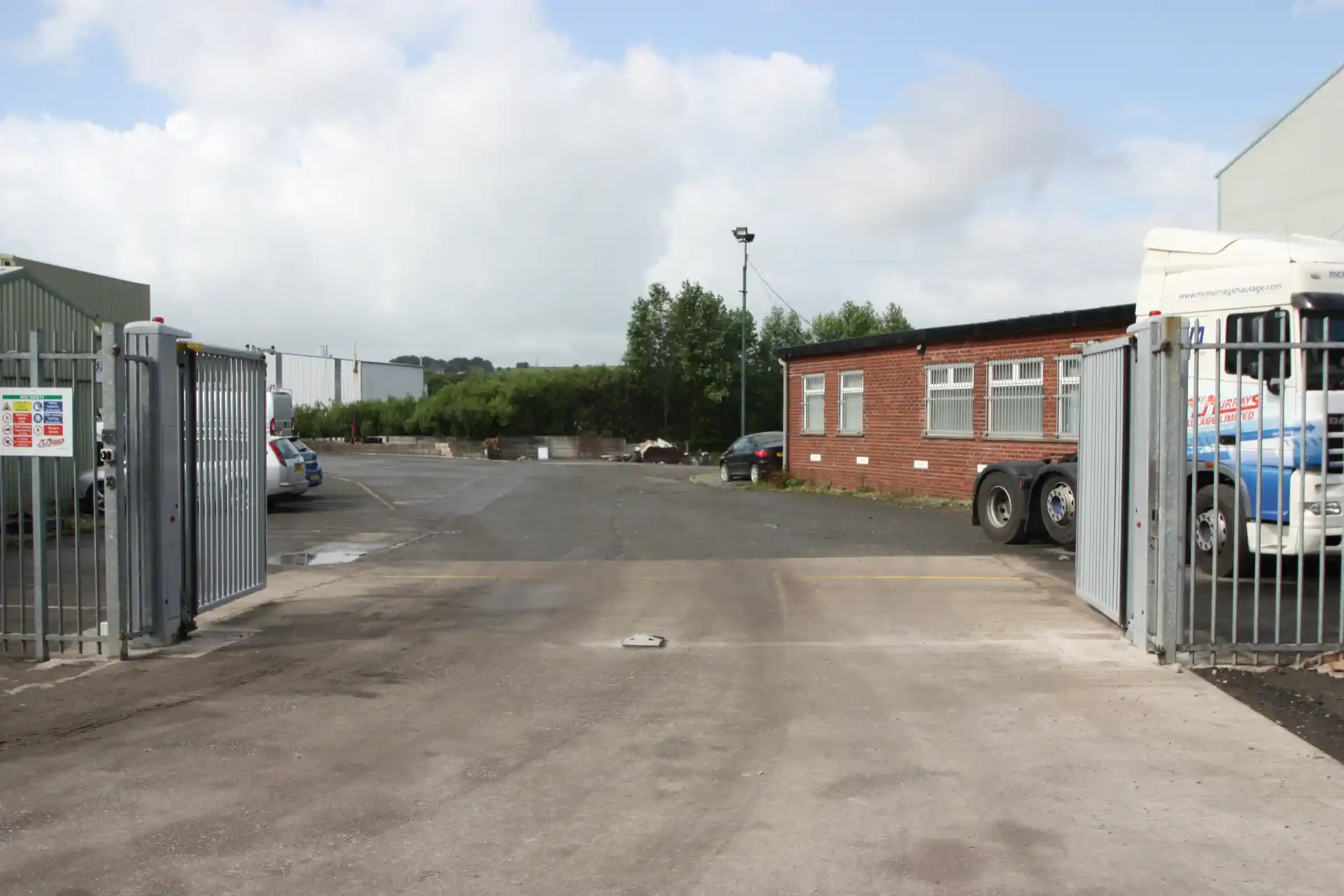

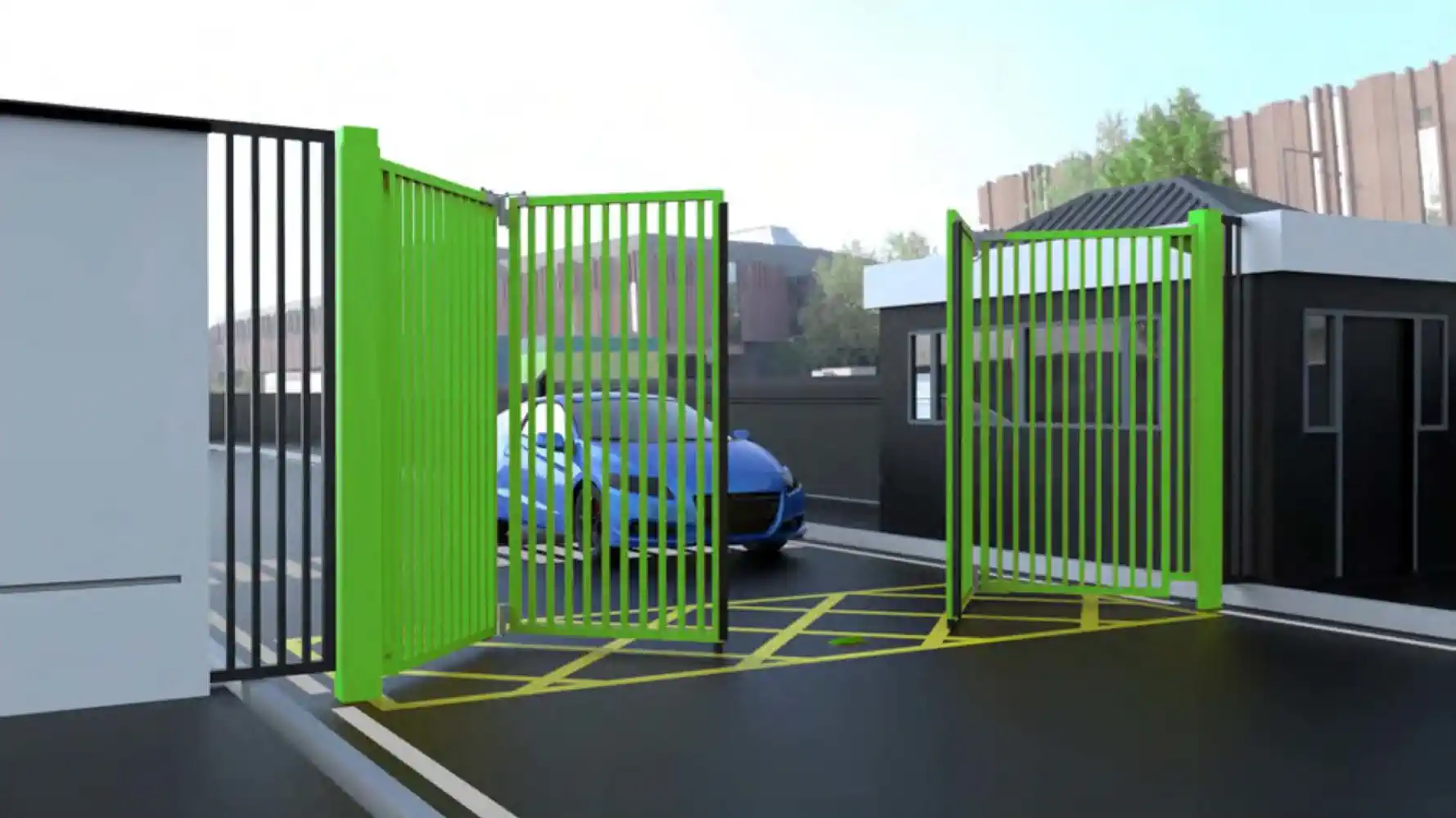

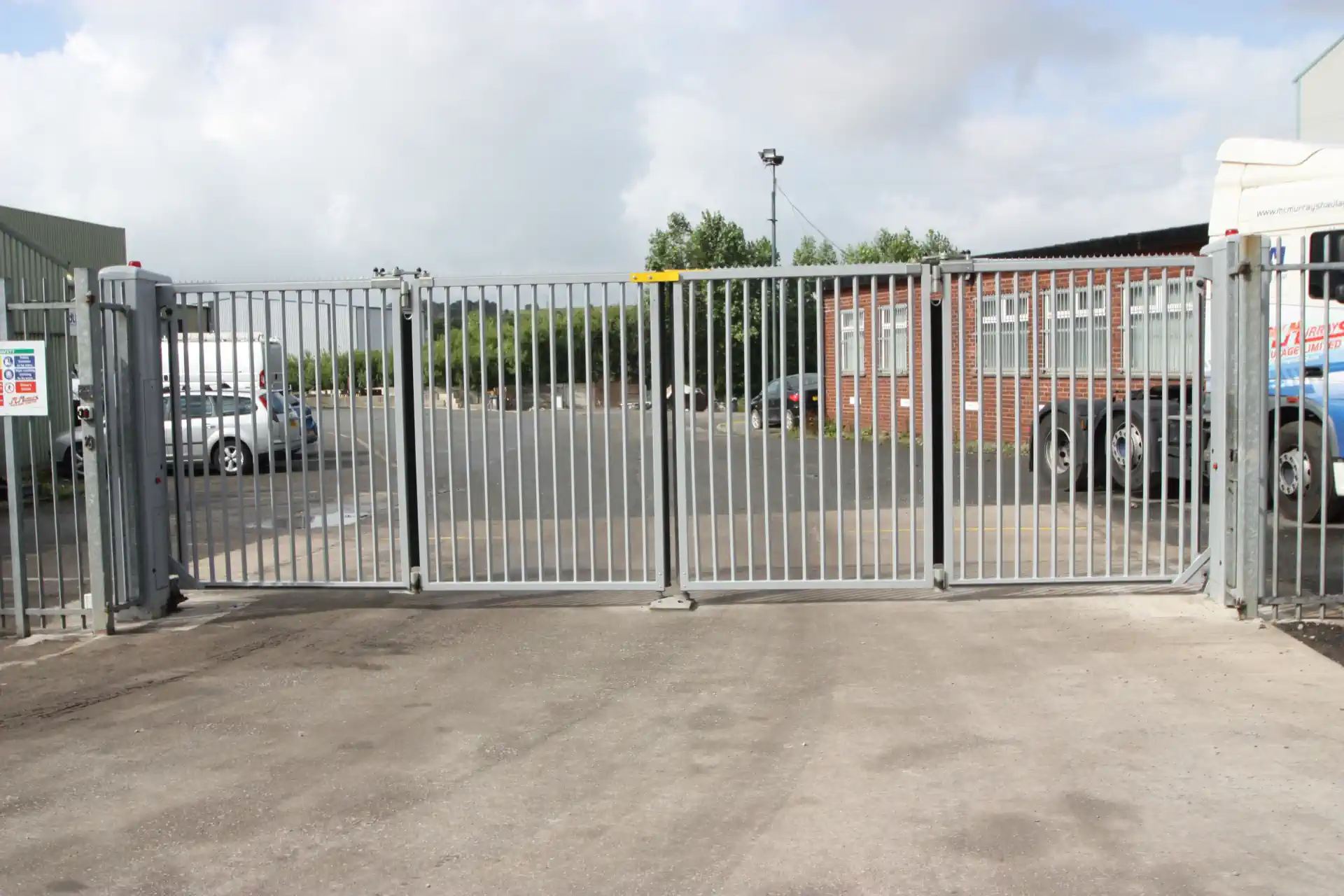

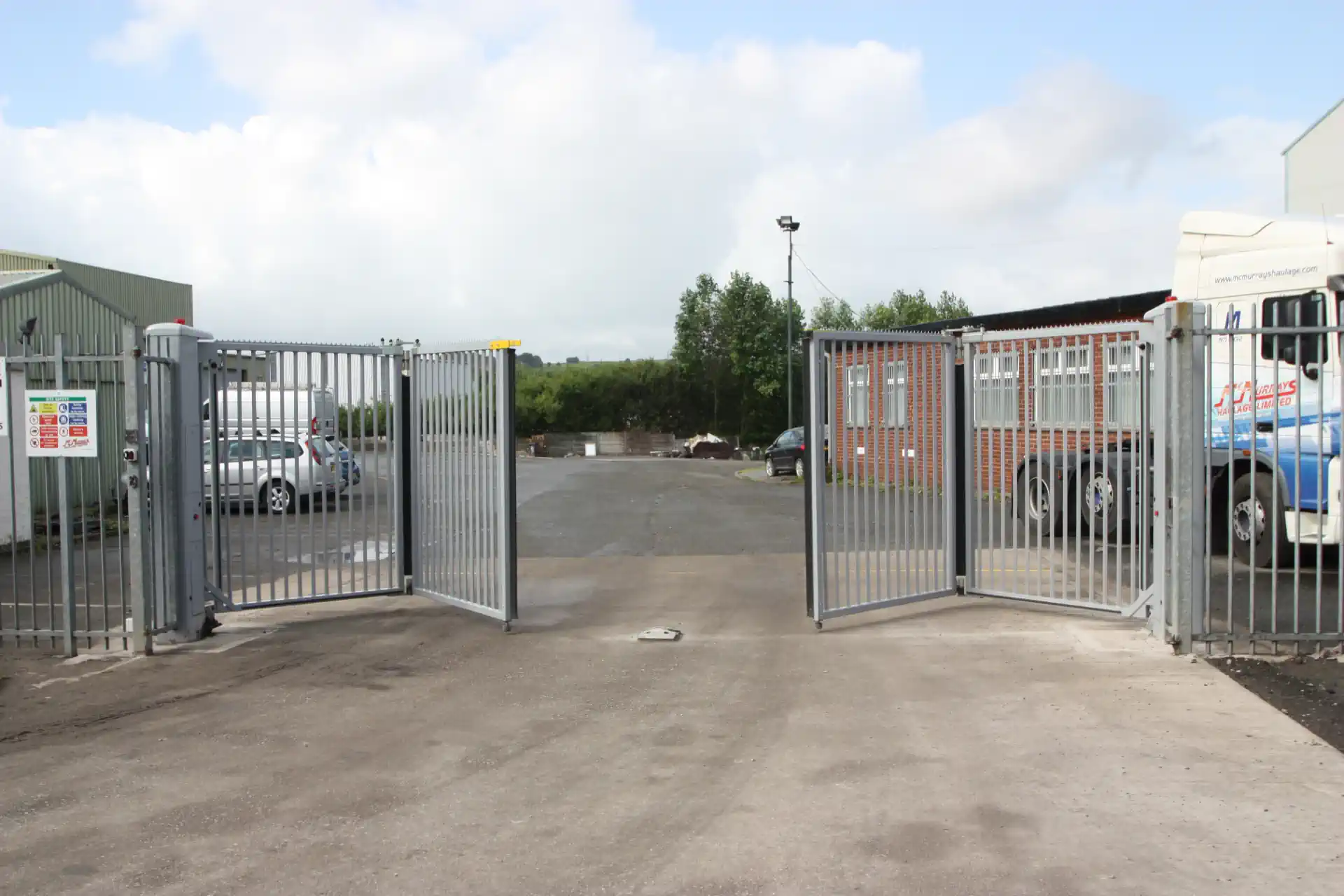

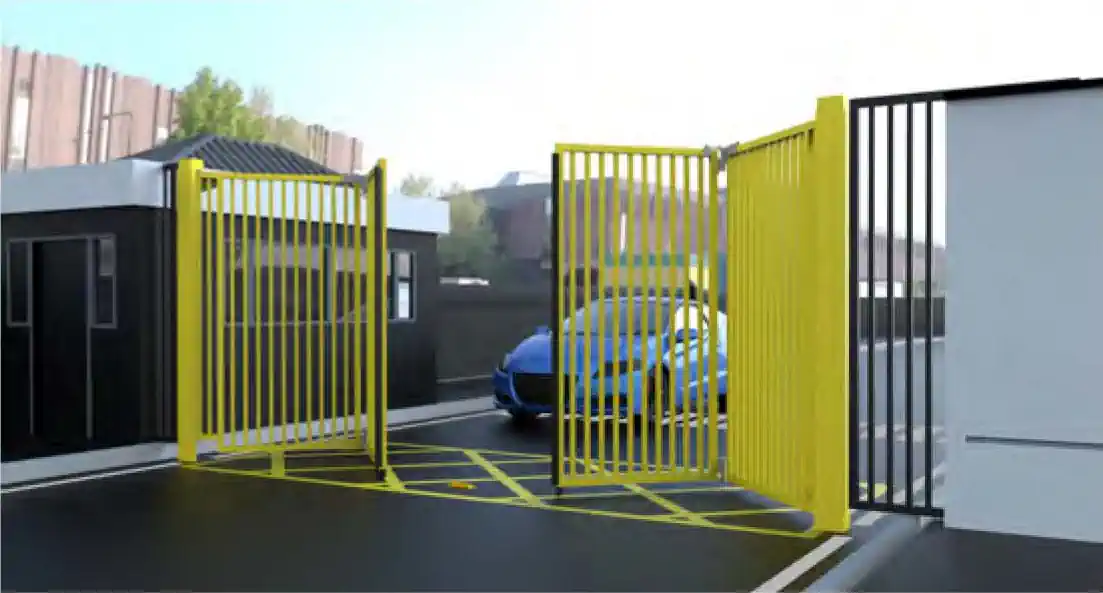

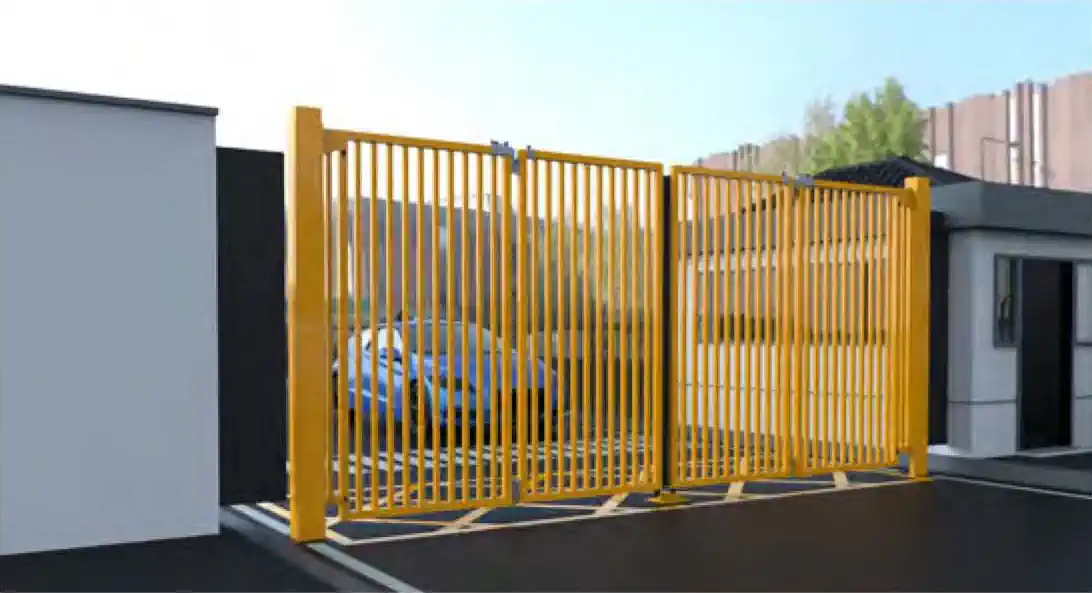

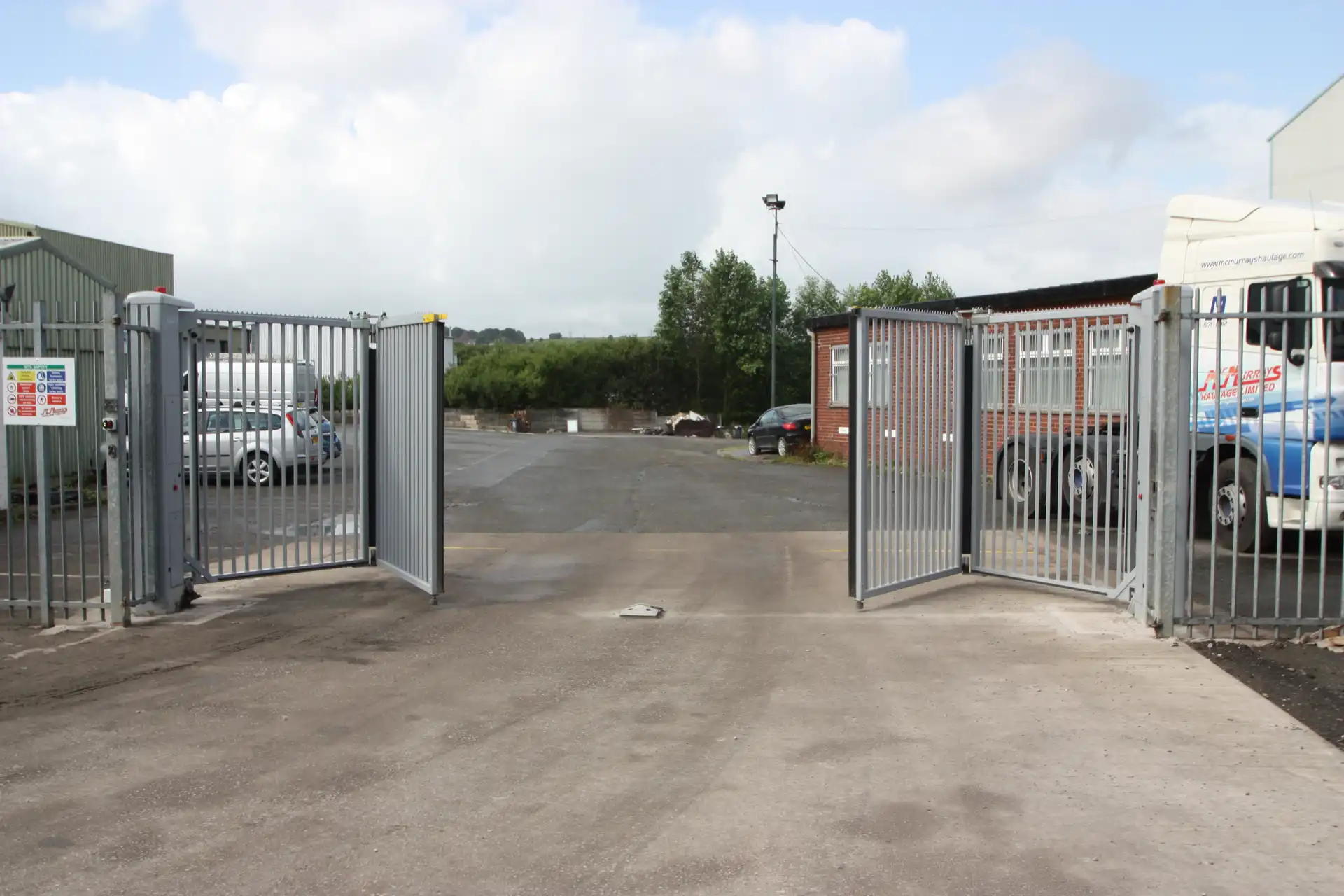

The HA9500 Bi-Folding Speed Gate is a high-performance, trackless solution designed for rapid opening and closing where space is limited and fast access is essential.
The HA9500 bi-folding speed gate is designed to open at more than twice the speed of a traditional swing gate of the same size.
This ensures high traffic throughput while maintaining secure control of site access.
The gate utilises an integrated frequency converter with single-phase input powering a three-phase motor, combined with a worm and wheel gearbox.
This direct-drive system delivers smooth, controlled and reliable movement during every cycle.
Rated for a 100% duty cycle, the HA9500 is capable of continuous operation in demanding environments.
This makes it ideal for high-traffic locations where reliability and uptime are critical.
The gate complies with BS/EN 12453 and is supplied with dual-height photocells and category 2/3 safety edges as standard.
A wide range of infill options, along with accessories such as spikes, warning lights and sirens, allows the system to be tailored to specific site requirements.
Specification:
CE Approved BS/EN 12453

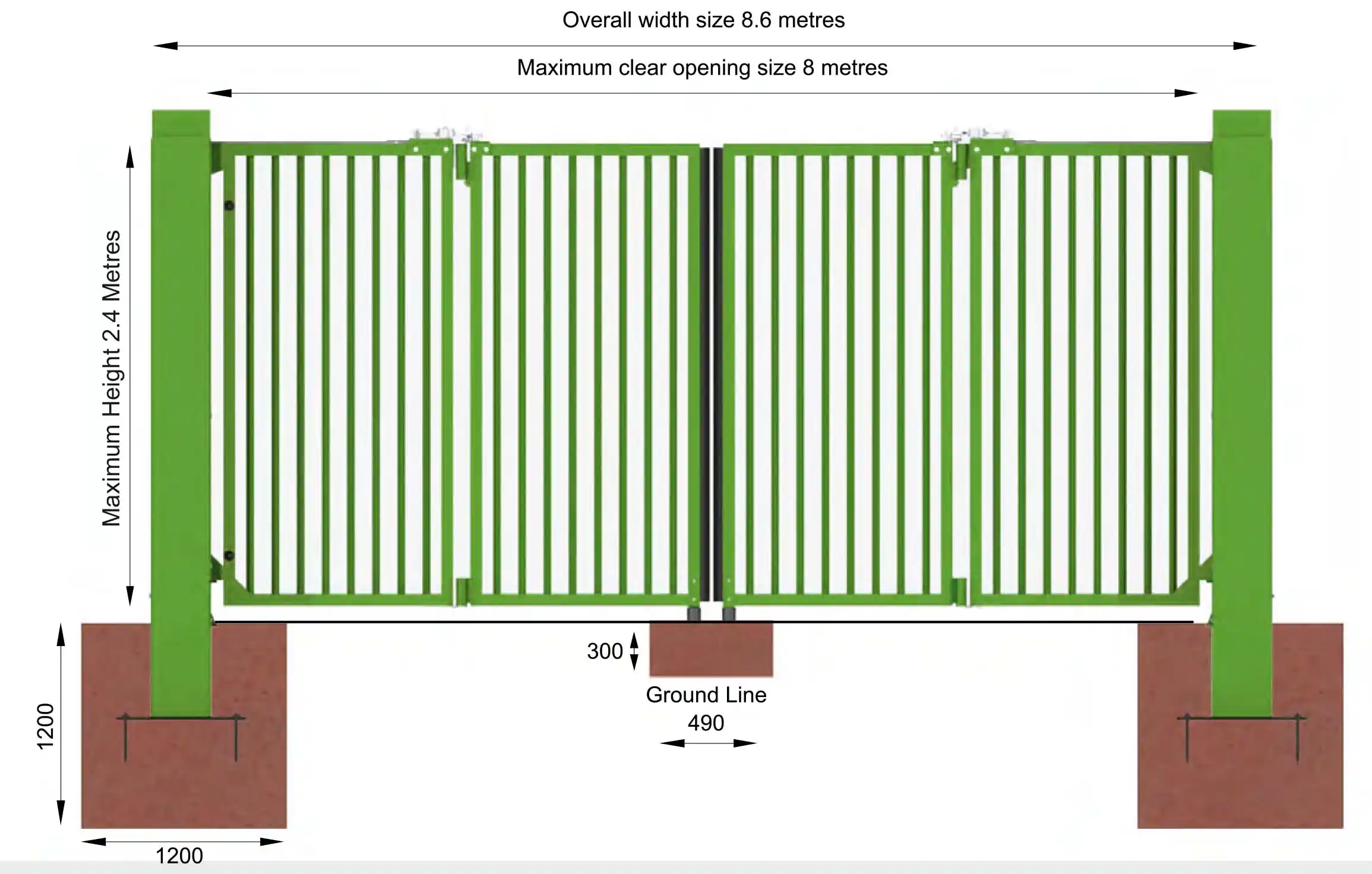

Maximum Span:
8 Metres Drive-Through
Maximum Height:
2.4 Metres
Finish:
Powder Coated (Galvanised Optional)
Power Requirements:
Single Phase 240V, 50Hz, 10 Amps
Drive Motor:
3 Phase Motor & Wormed Gearbox
Duty Cycle:
100% Continuous Duty Cycle Rating
Operation Time:
4 – 10 Seconds (Dependant on Version)

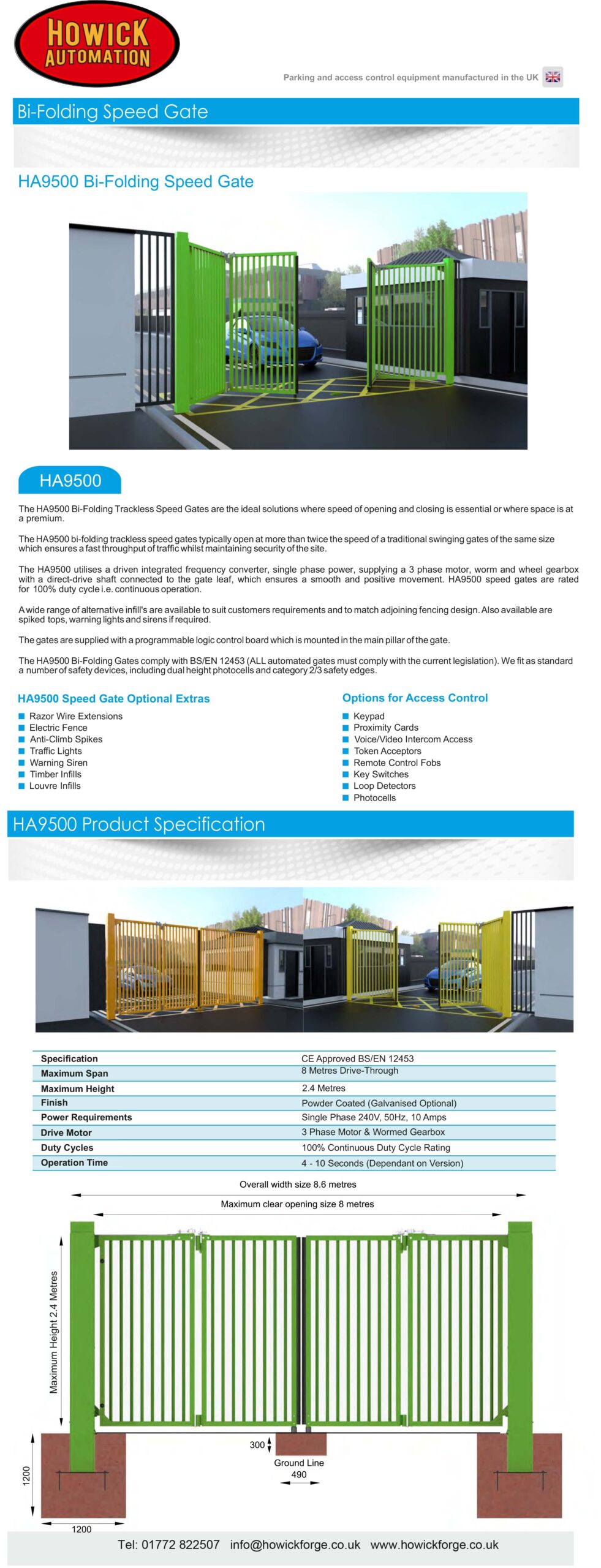

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA9500 Bi-Folding Speed Gate is designed for environments where rapid access and limited space are key considerations. Its trackless bi-folding design allows for fast operation without requiring the space needed for traditional swing or sliding gates.
With advanced control systems and continuous duty capability, the gate delivers reliable performance in high-traffic applications such as industrial sites, commercial premises and secure facilities.
Its flexible design and wide range of customisation options ensure it can be adapted to meet both functional and aesthetic requirements.
Opens significantly faster than traditional swing gates.
Bi-folding system ideal for restricted installation areas.
100% duty cycle for high-traffic environments.
