The HA4200 Pedestrian Gate is a versatile access control solution designed to secure pedestrian entry points across perimeter fencing systems in commercial and industrial environments.
The HA4200 Pedestrian Gate is designed to secure and control access to unauthorised areas, making it ideal for perimeter fence lines and controlled entry points.
It is available in manual, semi-automatic and fully automatic variants to suit a wide range of site requirements.
The gate is available in widths from 1.2m to 2.0m and heights up to 3.0m, with 2.4m being the most common specification.
A wide range of infill options is available including mesh, palisade, wood and tube bar to match existing perimeter fencing.
The HA4200 is constructed from fully welded mild steel for strength and long-term durability.
It is fitted with adjustable rod eye bearing hinges with integrated grease nipples, ensuring smooth operation and reduced maintenance.
A wide range of locking systems, key-coded handles and access control devices can be integrated to suit site requirements.
Each gate is custom-built, allowing full compatibility with customer or architect specifications for secure locking and operation.
Specification:
CE Rated
Duty Cycle:
Up to 70%
Finish:
Powder Coated (Galvanised Optional)
Power Requirements:
230V 10 Amp MCB 50Hz
(Semi or Automatic Variants Only)
Material:
Mild Steel

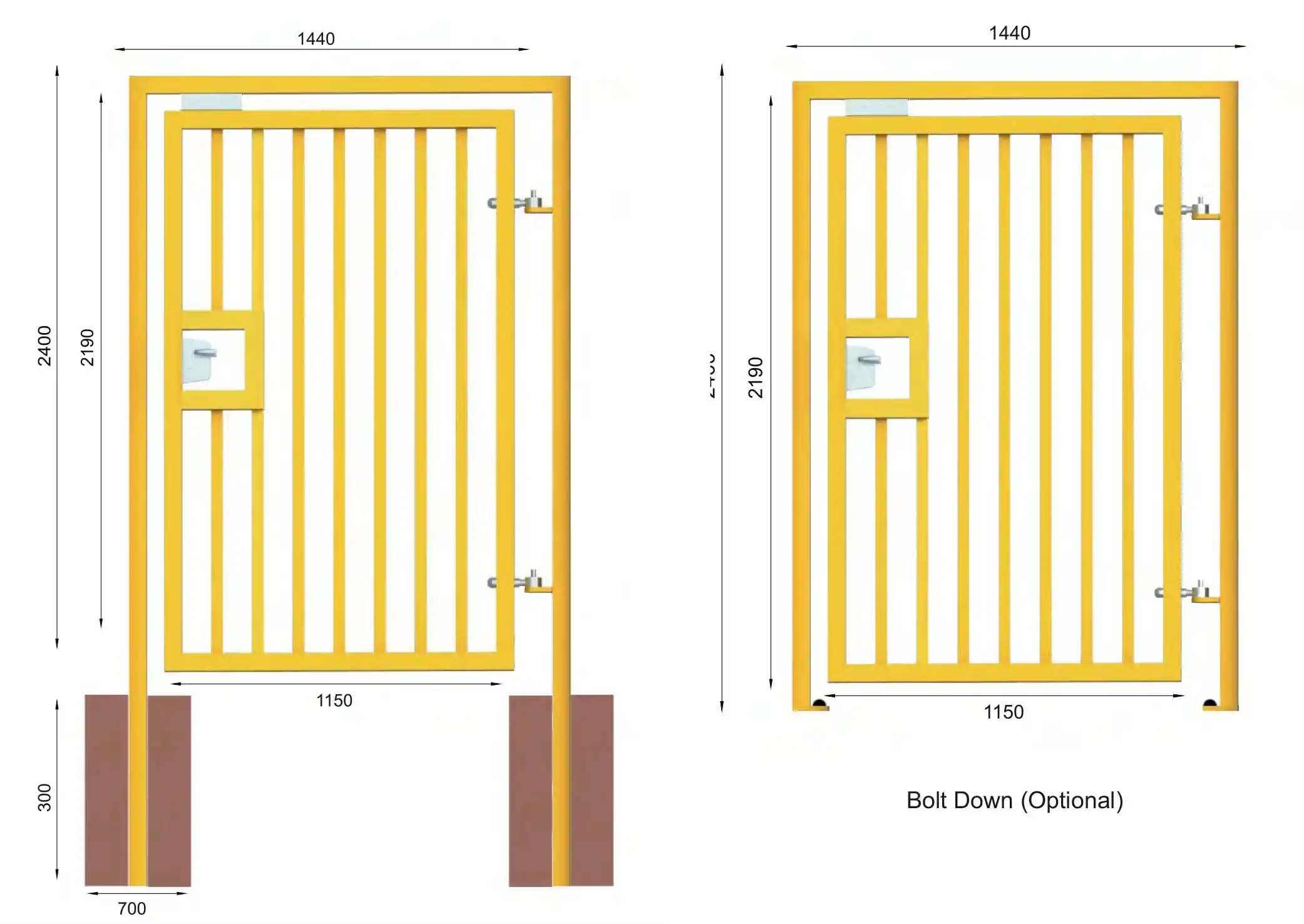

Dimensions:
Standard 1440mm x 2400mm
Infill:
Mesh/Wood/Palisade/Tube Bar
Installation:
Cast In or Bolt Down

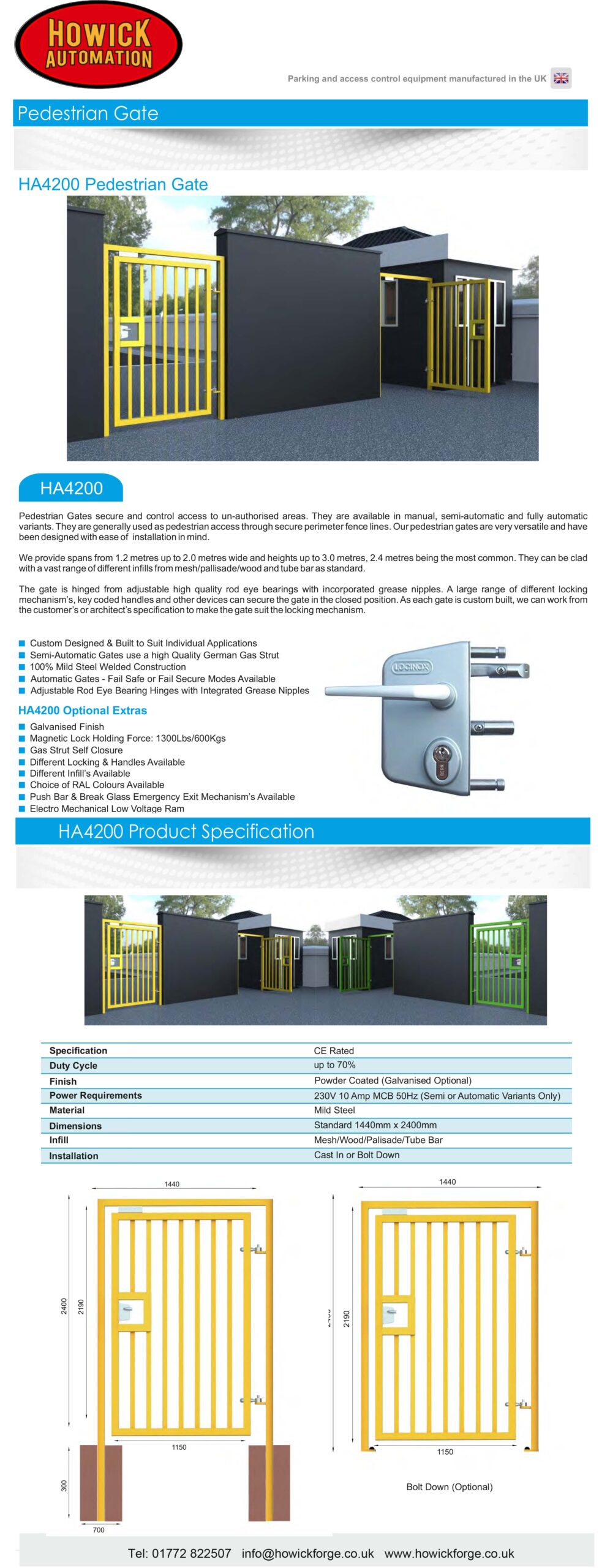

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA4200 Pedestrian Gate is designed to provide secure and reliable pedestrian access control across a wide range of environments. Its robust construction makes it suitable for both commercial and industrial perimeter systems.
With multiple operating options including manual, semi-automatic and fully automatic configurations, the gate can be adapted to suit different levels of access control and site requirements.
Its custom-built design allows full flexibility in locking systems, infills and finishes, ensuring seamless integration with existing fencing and infrastructure.
Available in manual, semi-automatic and automatic variants.
100% welded mild steel frame for long-term durability.
Fully configurable to match site-specific requirements.
