The HA9100A Auto Sliding Gate is a cost-effective cantilever system designed for smaller openings, delivering secure, efficient and fully compliant access control.
Developed in response to market demand, the HA9100A offers a more compact solution based on the success of the larger 9000 series gates.
It is ideal for sites with smaller access widths, providing a competitive and cost-effective option without compromising on performance.
The HA9100A Automatic Cantilever Sliding Gate complies with BS/EN 12453, meeting all required automated gate safety standards.
It is fitted with dual-height photocells and six category 3 monitored safety edges to ensure safe operation at all times.

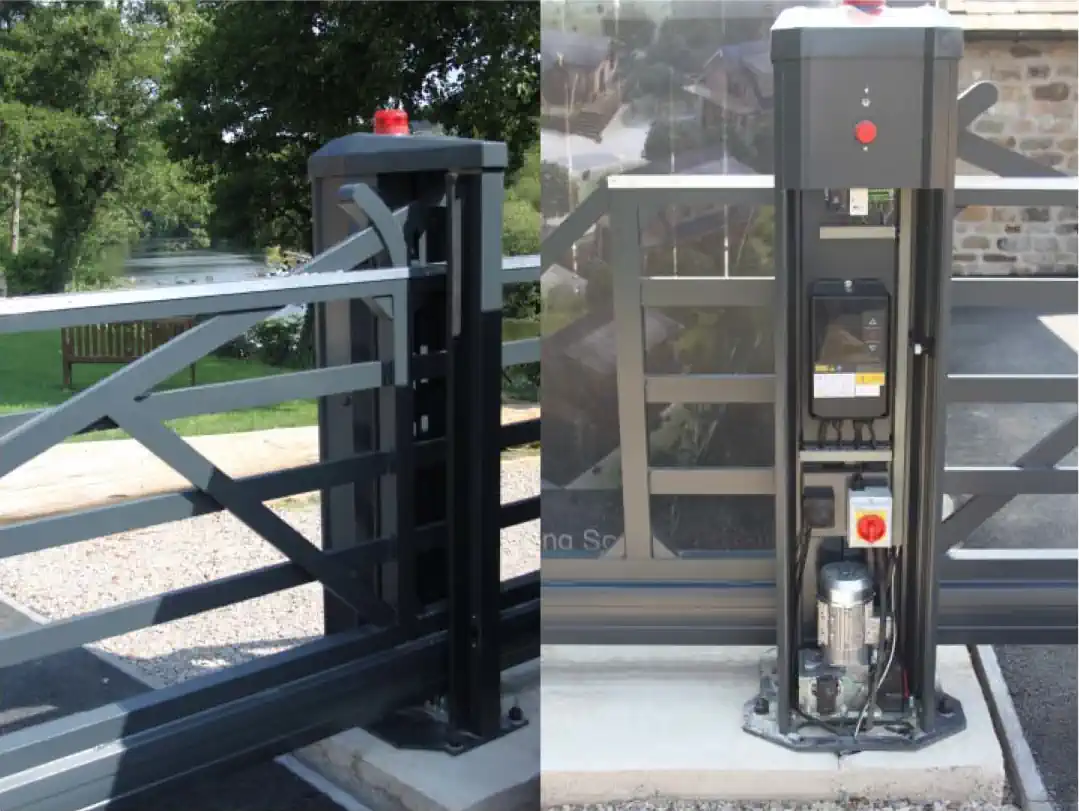

The gate is controlled by a purpose-built controller with a single-phase supply and integrated frequency converter driving a three-phase motor.
A rack and pinion system monitored by an encoder ensures smooth, precise and reliable movement across all operating conditions.
Constructed from high-grade aluminium, the gate offers excellent corrosion resistance and long-term durability.
Delivered fully assembled on a crane-equipped vehicle, it is ready for quick installation, reducing on-site disruption and setup time.
Operating Speed:
4-6 Seconds Per Metre (Dependant on Version)
Duty Cycle:
100% Heavy Industrial Usage
Specification:
CE Approved, TUV Approved, BS/EN 12453
Power Requirements:
Single Phase 230v 50Hz 10 Amp
Colours:
All RAL Colours Available
Maximum Span:
6.0 Metres Drive-Through
Maximum Height:
2.4 Metres (Max Width 6.0m)

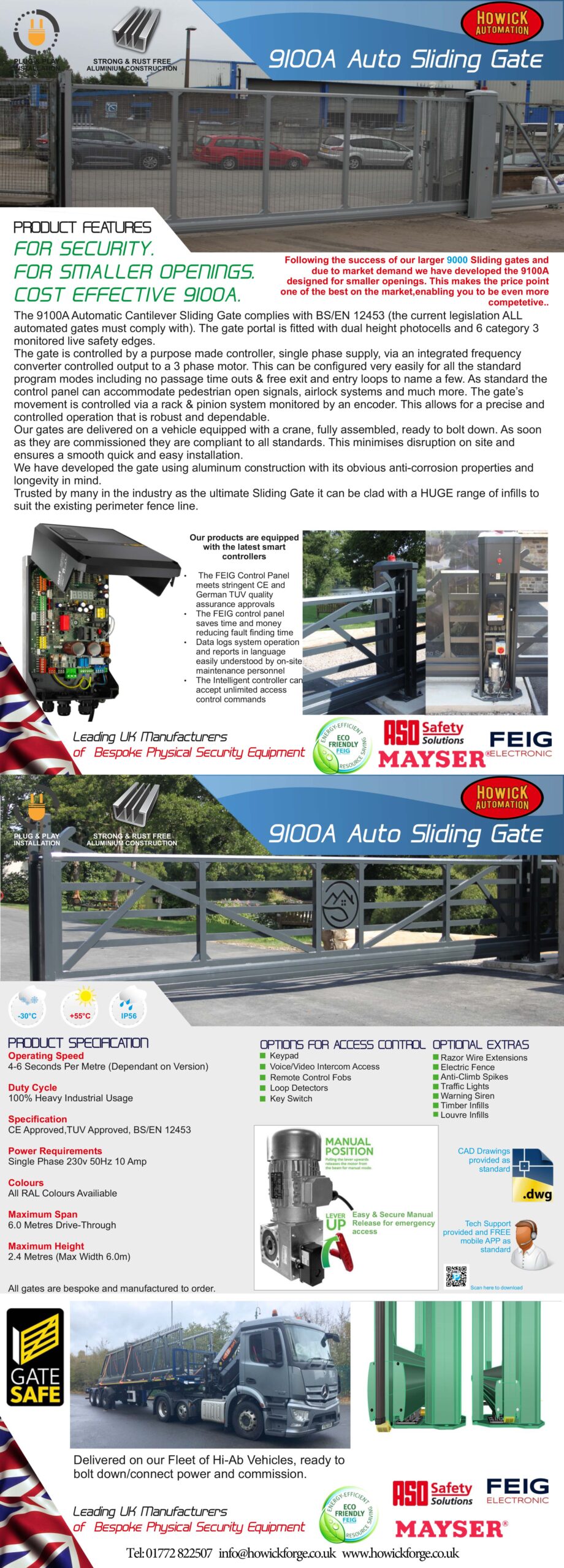

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA9100A Auto Sliding Gate provides a practical and reliable solution for sites requiring secure automated access across smaller openings. Its compact design makes it ideal for locations where space and budget are key considerations.
With advanced control features and full compliance with safety standards, the gate delivers dependable performance while remaining easy to configure and operate.
Its durable aluminium construction and rapid installation process ensure long-term reliability with minimal disruption during setup.
Designed to deliver high performance at a competitive price point.
Ideal for smaller openings up to 6 metres.
Supplied fully assembled for fast and efficient setup.
