The HA5000AHD Aluminium Raise Arm Barrier is a durable, low-maintenance manual access control solution designed for secure and efficient vehicle management in commercial and industrial environments.
Howick Automation parking and access control equipment is manufactured in the UK, ensuring high standards of quality, reliability and performance.
The HA5000AHD forms part of a proven range of manual barriers designed for commercial and industrial use.
Manual raise arm barriers provide a low-maintenance and cost-effective way of controlling access to unauthorised or restricted areas.
They are easy to operate and widely used in commercial applications due to their reliability and practical design.

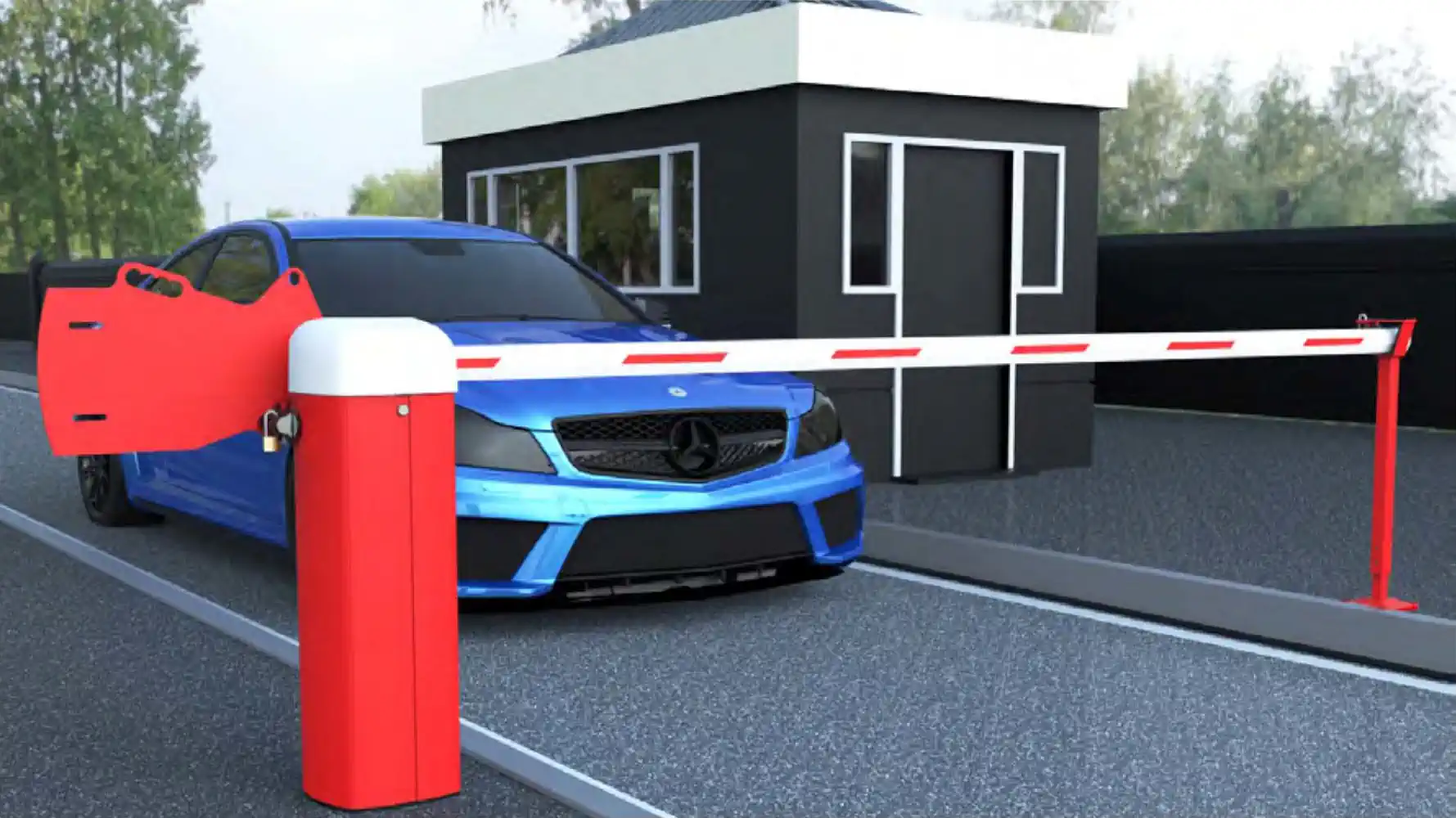

The HA5000AHD features a sleek, innovative design that enhances car parks and building entrances while blending seamlessly with automated barrier systems.
Its modern appearance makes it ideal for sites requiring a consistent and professional infrastructure aesthetic.
Built with an aluminium body to resist corrosion, all components are zinc-coated for long-term durability. The system is designed for smooth operation, allowing easy use with minimal training.
It is supplied complete with M16/M12 anchor shield bolts, a fixed lockable end rest, and an exterior-rated padlock.

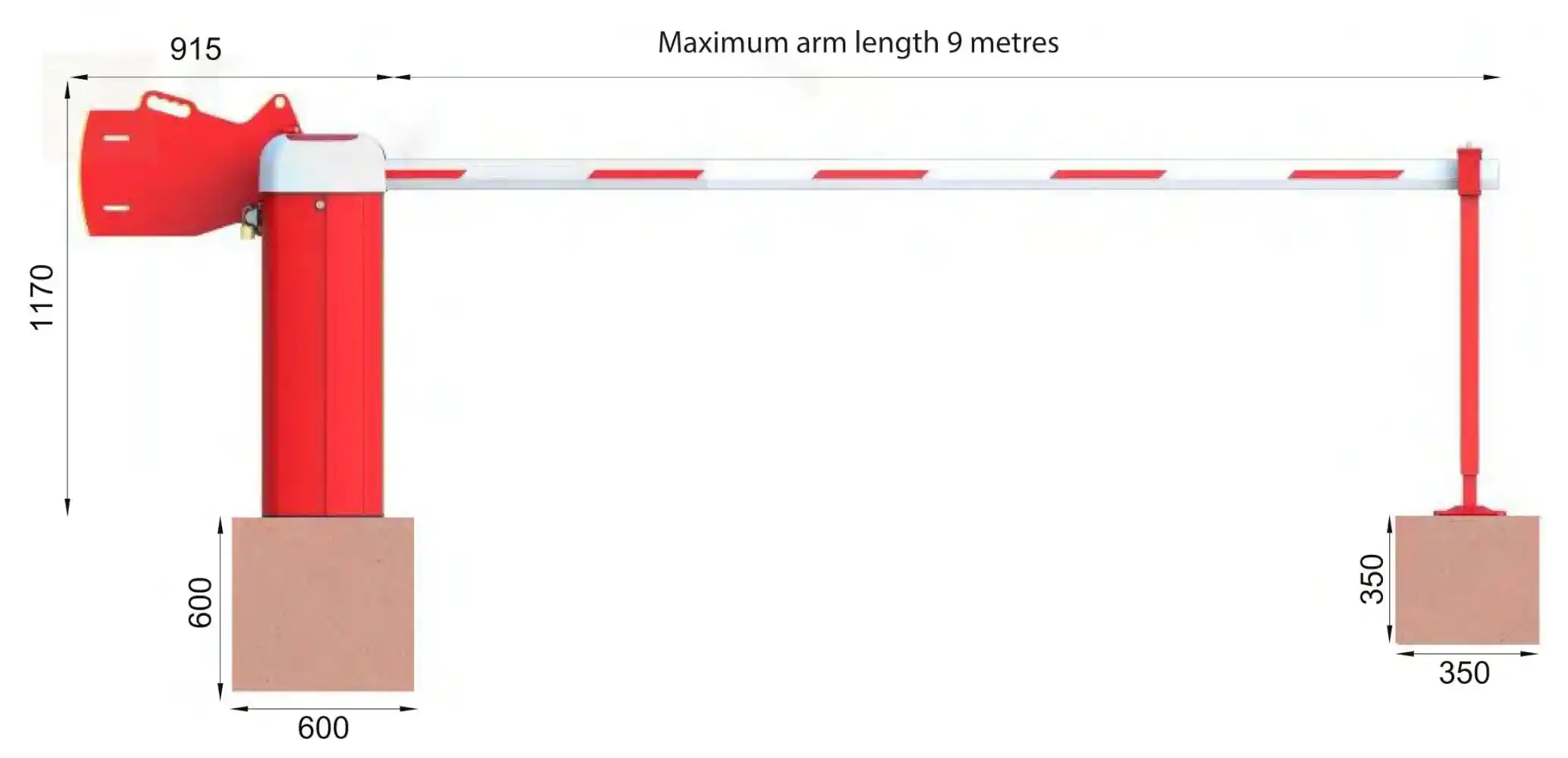

Maximum boom length:
9 metres
Construction:
Aluminium body / aluminium arm
Base plates:
Galvanised steel plate
Barrier lid:
Cast aluminium, powder coated
Finish:
PPC finish in standard RAL colours
Standard accessories:
Weatherproof padlock / adjustable end rest
Counterweights:
Steel PPC counterweights
Product weight:
82kg (excluding counterweights)
Handing options:
Left or right handed (optional)
Boom diameter:
115mm x 80mm (heavy duty)
Skirting options:
Up to 8 metres
Dimensions:
435mm x 433mm x 1135mm
Ambient temperature range:
-10°C to 60°C
External padlock:
60mm long shackle brass padlock with 3 keys
Fixings:
M16/M12 anchor shield bolts included

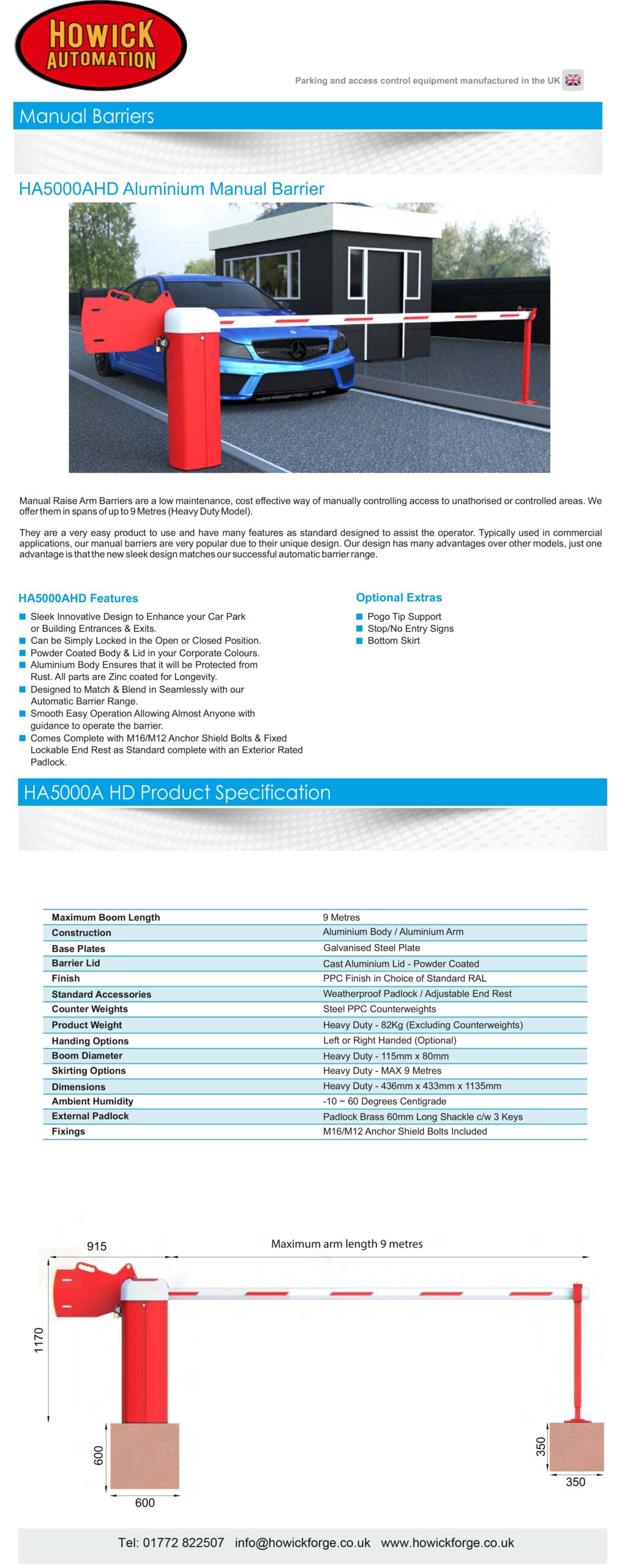

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA5000AHD Aluminium Raise Arm Barrier is designed for demanding commercial and industrial environments where reliable manual access control is essential. Its robust construction and wide-span capability make it suitable for a variety of site layouts.
Engineered with an aluminium body and zinc-coated components, the barrier offers excellent resistance to corrosion while maintaining smooth, controlled operation over time.
With its compatibility across modern site designs and automated systems, it provides a professional and consistent access control solution.
Aluminium construction with zinc-coated components for long-lasting durability.
Counterbalanced design ensures easy and controlled lifting.
Matches automated systems for a consistent site appearance.
