The HA5000S Manual Raise Arm Barrier is a secure, simple and cost-effective manual access control solution, designed for easy operation and reliable performance.
The HA5000S Manual Raise Arm Barrier is part of a tried, tested and trusted range of manual barriers widely used across the UK. Designed for reliability, it delivers consistent performance in a variety of access control environments.
Manual raise arm barriers offer a low-maintenance and cost-effective way to control vehicle access to restricted or private areas.
Constructed from a combination of steel and aluminium, the barrier is built for strength and longevity. The pivot assembly is manufactured from aluminium box section, with a zinc-plated shaft running through heavy-duty stainless steel bearing blocks.
This ensures smooth operation and long-term durability even in regular-use environments.
The HA5000S incorporates a locking mechanism that allows the barrier to be secured in both raised and lowered positions before applying a padlock.
A counterbalanced fishtail weight system is fine-tuned for ease of use, while rubber stops cushion the arm at the end of travel for added protection.
The aluminium arm is supplied with high-visibility vinyl hatching as standard, available in red and white or yellow and black. Alternative colours can be provided if required.
The unit is zinc plated and polyester powder coated, ensuring a durable, weather-resistant finish suitable for outdoor use.
CE Approved:
Yes
Maximum span:
7.0m (plain pole) | 5.0m (bottom skirt)
Finish:
Zinc plated & polyester powder coated
Material construction:
Steel & aluminium
Counterweights:
Steel PPC counterweights
Unit weight:
79kg (excluding counterweights)
Pedestal dimensions:
1110mm x 444mm x 300mm
Pole dimensions:
94mm x 64mm oval
Handing options:
Left or right handed
Fixings:
M16 anchor shield bolts / M12 for end rest
Skirting options:
Up to 5 metres
External padlock:
Brass 60mm long shackle with 3 keys

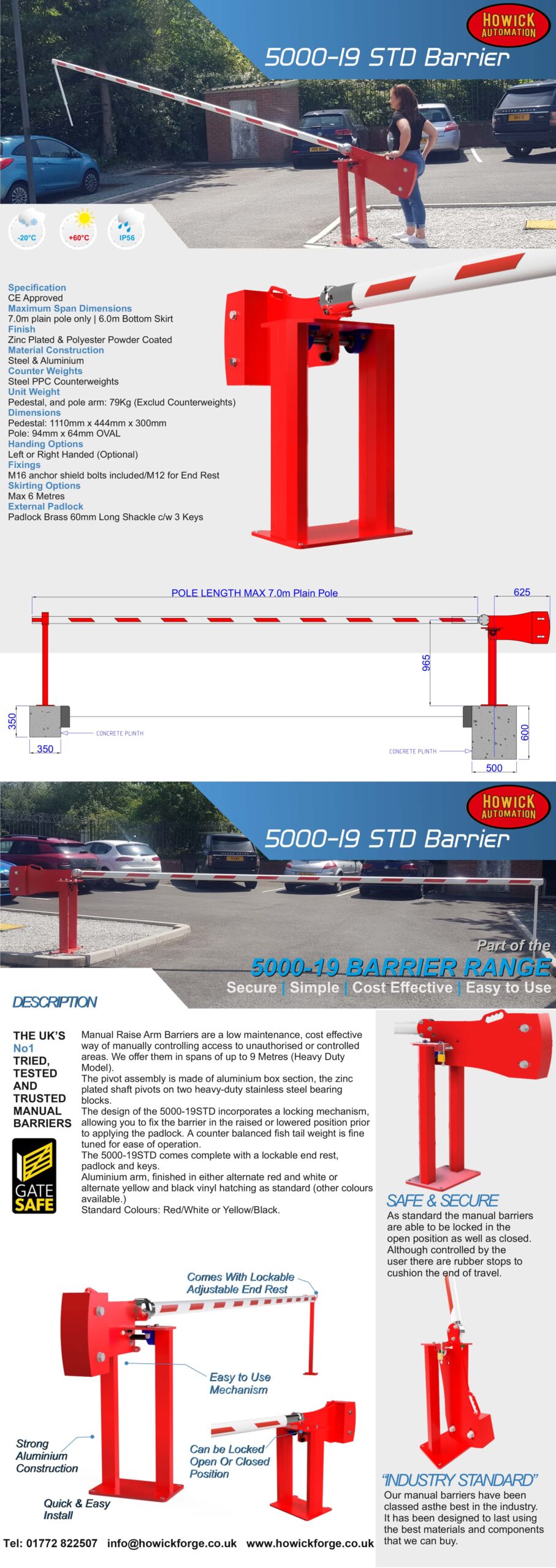

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA5000S Manual Raise Arm Barrier provides a practical and dependable solution for managing vehicle access across commercial, industrial and private sites. Its simple manual operation makes it ideal for locations where automation is not required.
Engineered using quality materials and proven design principles, the barrier delivers long service life with minimal maintenance requirements.

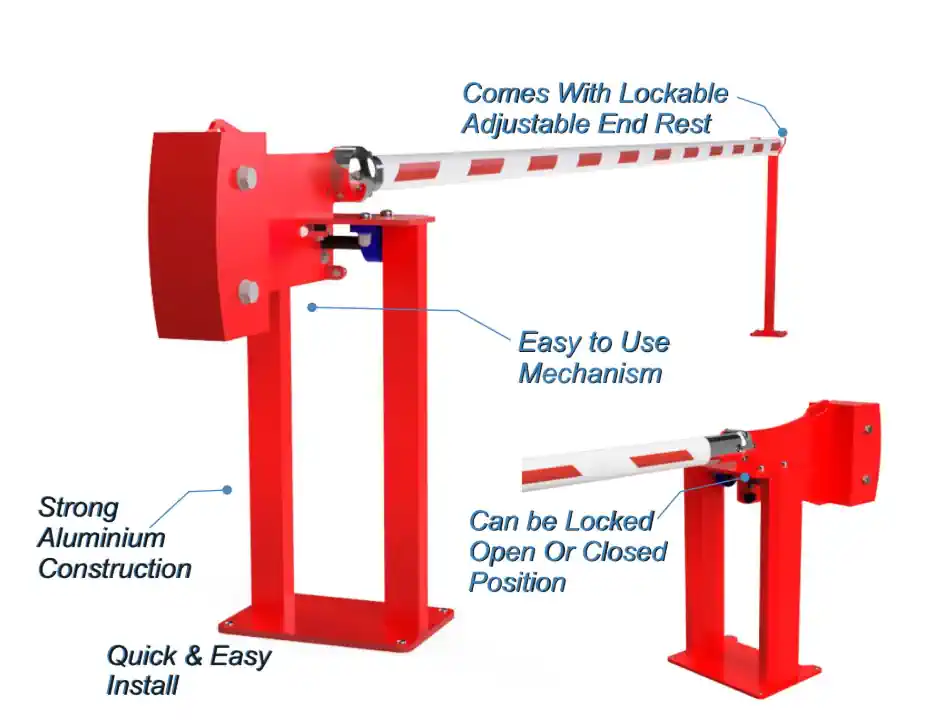

Supplied complete with a lockable end rest, padlock and keys, it offers a complete and ready-to-install access control solution.
Lockable in both open and closed positions with cushioned end stops.
Widely trusted and built using high-quality components.
Designed for fast, straightforward setup on site.
