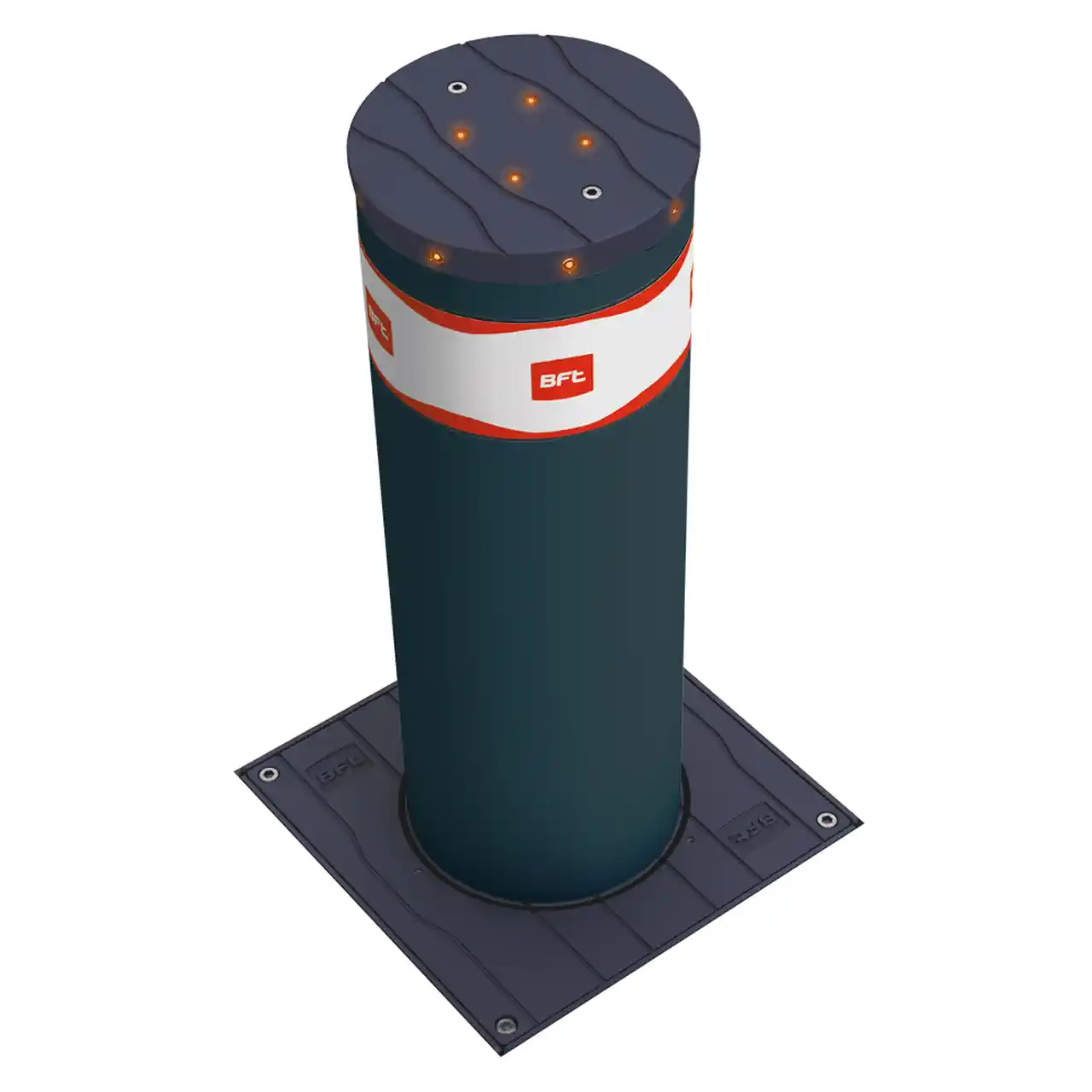

The STOPPY MBB is a high-performance electromechanical bollard designed for intensive use, delivering reliable traffic control and security in demanding environments.
The STOPPY MBB is engineered for higher usage applications, thanks to its internal oil-bath gear motor which enables increased operational capacity.
It is ideal for sites requiring frequent access control, such as commercial facilities, urban infrastructure and high-traffic areas.
Designed to perform in harsh environments, the bollard features cataphoresis-treated metal components for enhanced corrosion resistance.
An integrated EPDM seal within the flange helps protect internal components by reducing the ingress of water, dirt and debris.
All versions of the STOPPY MBB are equipped with an LED light crown, improving visibility and safety in all lighting conditions.
The LED cap sits flush within the flange when lowered, helping to minimise debris build-up and maintain long-term performance.
The STOPPY MBB is available in 500mm and 700mm height options, both with a 219mm diameter shaft to suit different security requirements.
It is offered in painted steel (RAL 7015) or stainless steel finishes, allowing it to match both functional and aesthetic site needs.
Power supply:
230V
Control unit:
Perseo CBE
Shaft height:
500mm
Shaft diameter:
219mm
Shaft thickness:
6mm
Raising time:
7 seconds
Frequency of use:
Very intensive
Operator type:
Electromechanical
Limit switch:
Reed magnetic sensor
Slowdown:
Yes
Breaking resistance:
150000J
Impact resistance:
10500J
Manual operation:
Reversible with no power
Protection rating:
IP67
Operating temperature:
-40 °C to +60 °C
Power supply:
230V
Control unit:
Perseo CBE
Shaft height:
700mm
Shaft diameter:
219mm
Shaft thickness:
6mm
Raising time:
9.8 seconds
Frequency of use:
Very intensive
Operator type:
Electromechanical
Limit switch:
Reed magnetic sensor
Slowdown:
Yes
Breaking resistance:
150000J
Impact resistance:
10500J
Manual operation:
Reversible with no power
Protection rating:
IP67
Operating temperature:
-40 °C to +60 °C
Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The STOPPY MBB electromechanical bollard is designed for locations where both security and high-frequency operation are essential. Its robust internal components and oil-bath motor system ensure consistent performance even under intensive use.
With advanced sealing and corrosion-resistant materials, the bollard is built to withstand harsh environmental conditions while maintaining long-term reliability.
Its combination of strength, visibility and operational efficiency makes it an ideal solution for critical access control points.
Oil-bath motor supports intensive operation up to 1,500 cycles per day.
Cataphoresis-treated components and EPDM sealing for harsh conditions.
Built-in light crown enhances safety and site awareness.
