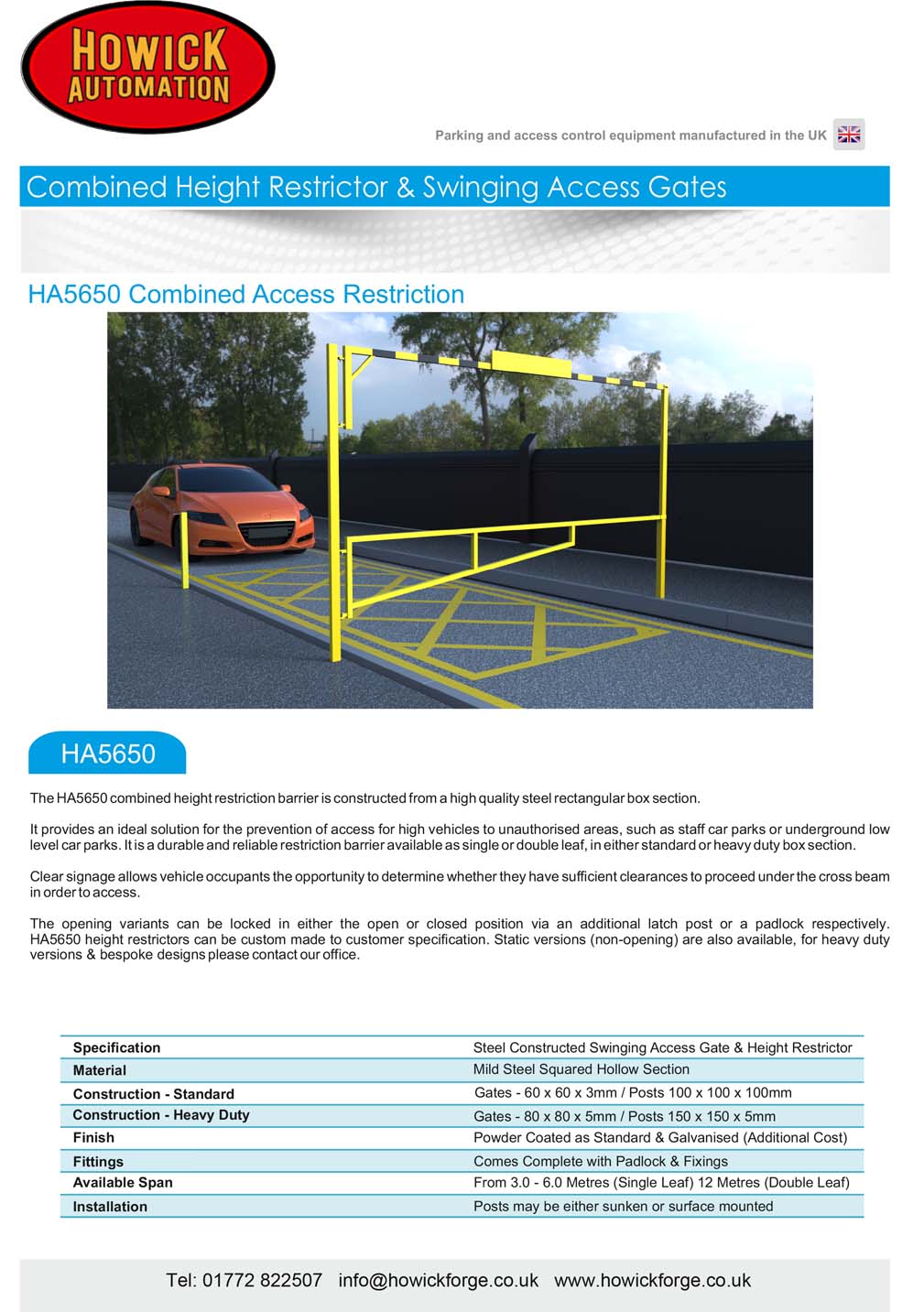

The HA5650 Combined Access Restriction is a robust height restriction barrier designed to prevent high vehicle access while allowing secure and controlled entry for authorised users.
The HA5650 combined height restriction barrier is manufactured from high-quality steel rectangular box section for strength and durability.
Its robust construction ensures long-term performance in both commercial and industrial environments.
This system provides an ideal solution for preventing access by high vehicles into restricted areas such as staff car parks and underground or low-clearance facilities.
It is designed to deliver a clear and reliable physical restriction where overhead clearance must be controlled.
The barrier incorporates clear signage to help drivers assess vehicle clearance before attempting to pass underneath.
This reduces the risk of accidental impact and improves overall site safety and traffic flow.
The HA5650 can be supplied as a single or double leaf configuration and is available in both standard and heavy-duty box section options.
Opening variants can be locked in either open or closed positions using a padlock or latch post, and static (non-opening) versions are also available for bespoke applications.
Specification:
Steel Constructed Swinging Access Gate & Height Restrictor
Material:
Mild Steel Squared Hollow Section
Construction – Standard:
Gates – 60 x 60 x 3mm
Posts – 100 x 100 x 100mm
Construction – Heavy Duty:
Gates – 80 x 80 x 5mm
Posts – 150 x 150 x 5mm
Finish:
Powder Coated as Standard & Galvanised (Additional Cost)
Fittings:
Comes Complete with Padlock & Fixings
Available Span:
From 3.0 – 6.0 Metres (Single Leaf)
12 Metres (Double Leaf)
Installation:
Posts may be either sunken or surface mounted
Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA5650 Combined Access Restriction provides a dependable solution for controlling vehicle height access in environments where clearance is critical. Its strong steel construction ensures long-term durability in demanding conditions.
Designed for flexibility, the system can be configured to suit a wide range of site requirements, including single or double leaf operation and both standard and heavy-duty builds.
With clear signage and secure locking options, it offers an effective and practical method of preventing unsuitable vehicle access while maintaining controlled entry.
Built from durable rectangular steel box section for long-term performance.
Available in single, double, and static variants to suit site needs.
Clear signage helps prevent accidental access by high vehicles.
