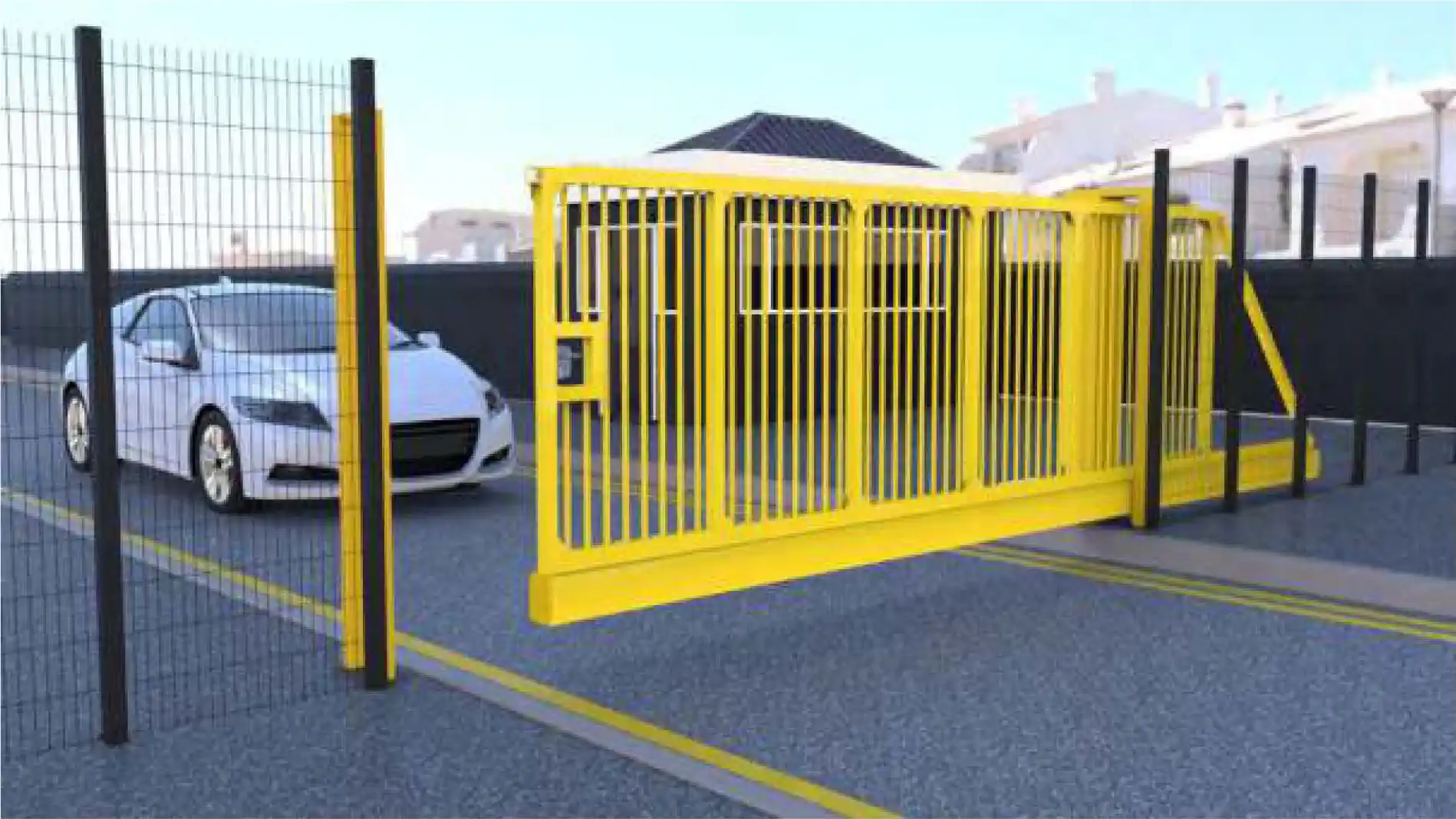

The HA9000M Manual Sliding Gate is a cost-effective cantilever system designed to provide smooth, low-maintenance manual access control for secure perimeter protection.
The HA9000 Cantilever Manual Sliding Gate offers a simple and reliable solution for manually controlling access to unauthorised areas.
It is ideal for sites where automation is not required but secure perimeter control is still essential.
An internal roller mechanism ensures smooth and consistent operation during every use.
This system provides long-term durability and ease of movement, even in demanding environments.
The gate features a robust construction with 6mm wall thickness aluminium bars fitted as standard for strength and rigidity.
A heavy-duty locking mechanism provides added security, while optional spikes can be fitted to deter unauthorised access.
The HA9000M shares the same flexibility as the automatic range, offering a wide choice of infill options including mesh, palisade and louvre designs.
Supplied as a complete unit, the gate is delivered ready to be installed onto pre-prepared concrete plinths for efficient setup.
Specification:
CE Approved BS/EN 12453

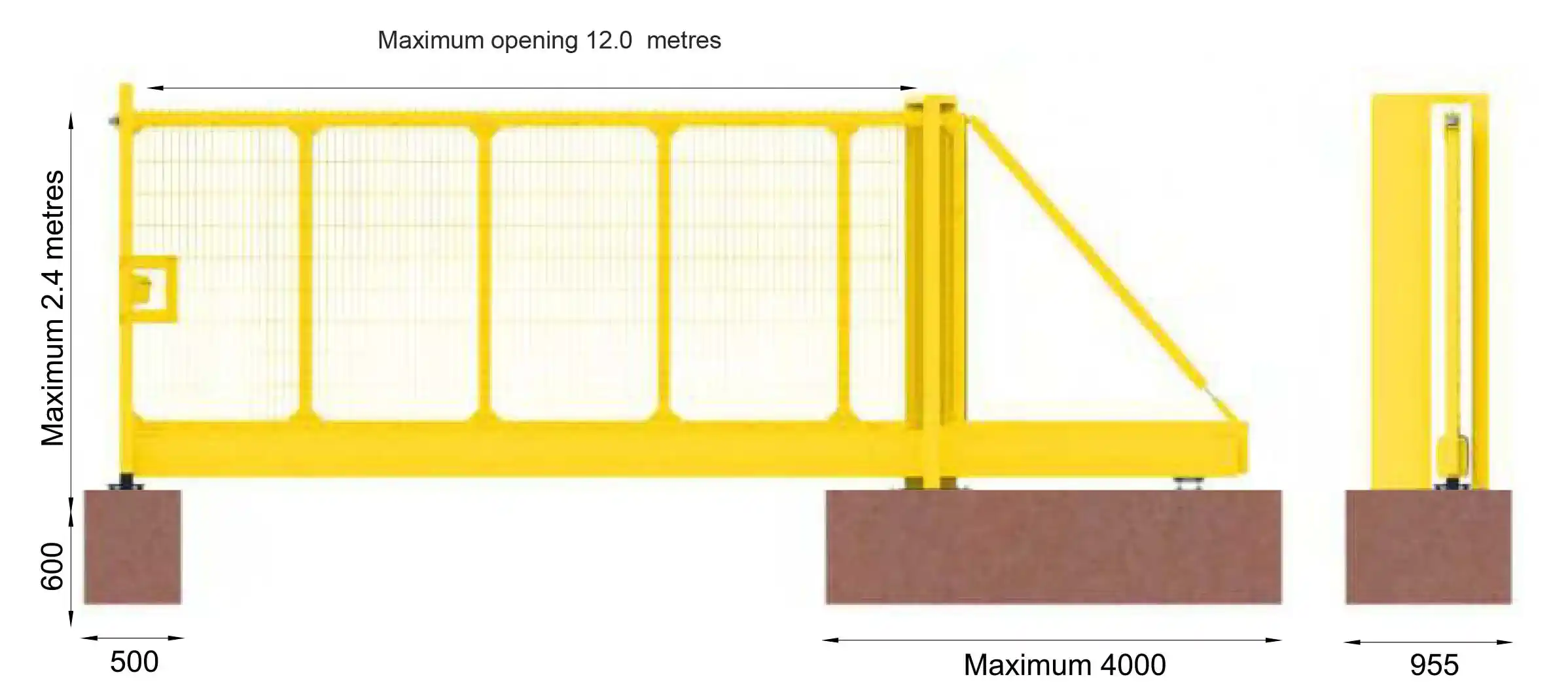

Maximum Span:
12 Metres Drive-Through
Maximum Height:
2.4 Metres (Max Width 12M)
Maximum Height:
3.0 Metres (Max Width 10M)
Finish:
Dual Compound Epoxy Finish
Operation:
Manual
Colours:
All RAL Colours Available
Dimensions:
250mm x 225mm Extruded Aluminium Beam
Infill Dimensions:
Infill – 30mm Dia. x 6mm Wall Thickness

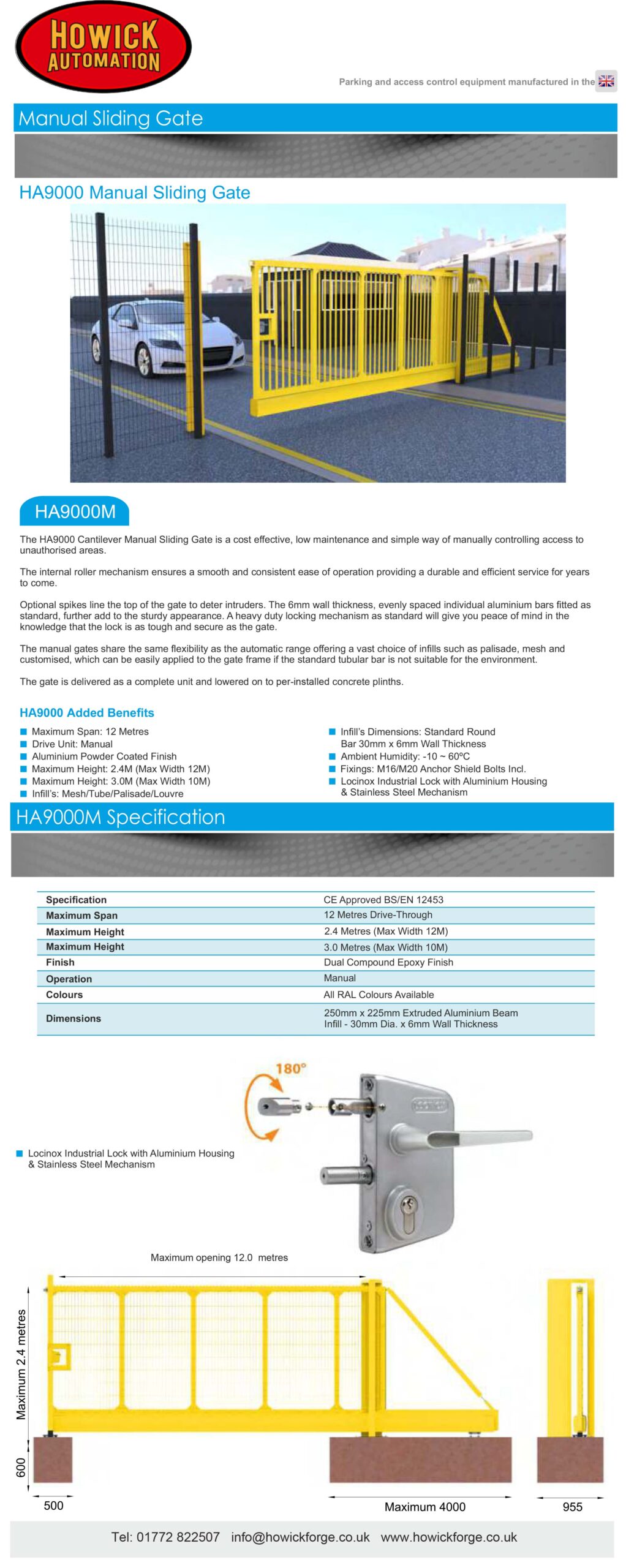

Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA9000M Manual Sliding Gate is designed to provide secure and efficient access control across large openings without the need for automation. Its cantilever design eliminates the need for ground tracks, ensuring reliable operation in all weather conditions.
With a smooth internal roller system and durable aluminium construction, the gate delivers consistent performance with minimal maintenance requirements.
Its flexible design allows for a wide range of infill options and configurations, making it suitable for various commercial and industrial applications.
Covers openings up to 12 metres.
Internal roller system ensures effortless movement.
Robust construction with industrial-grade locking system.
