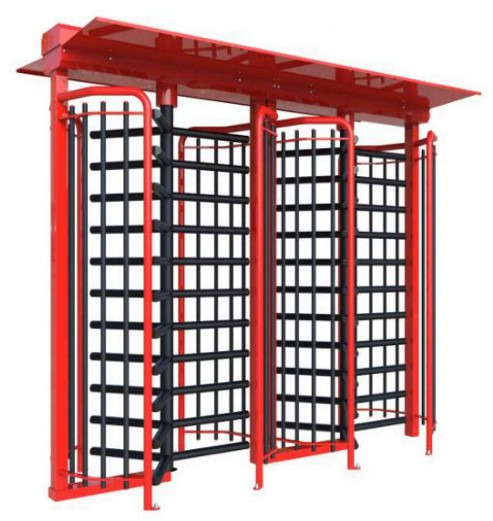

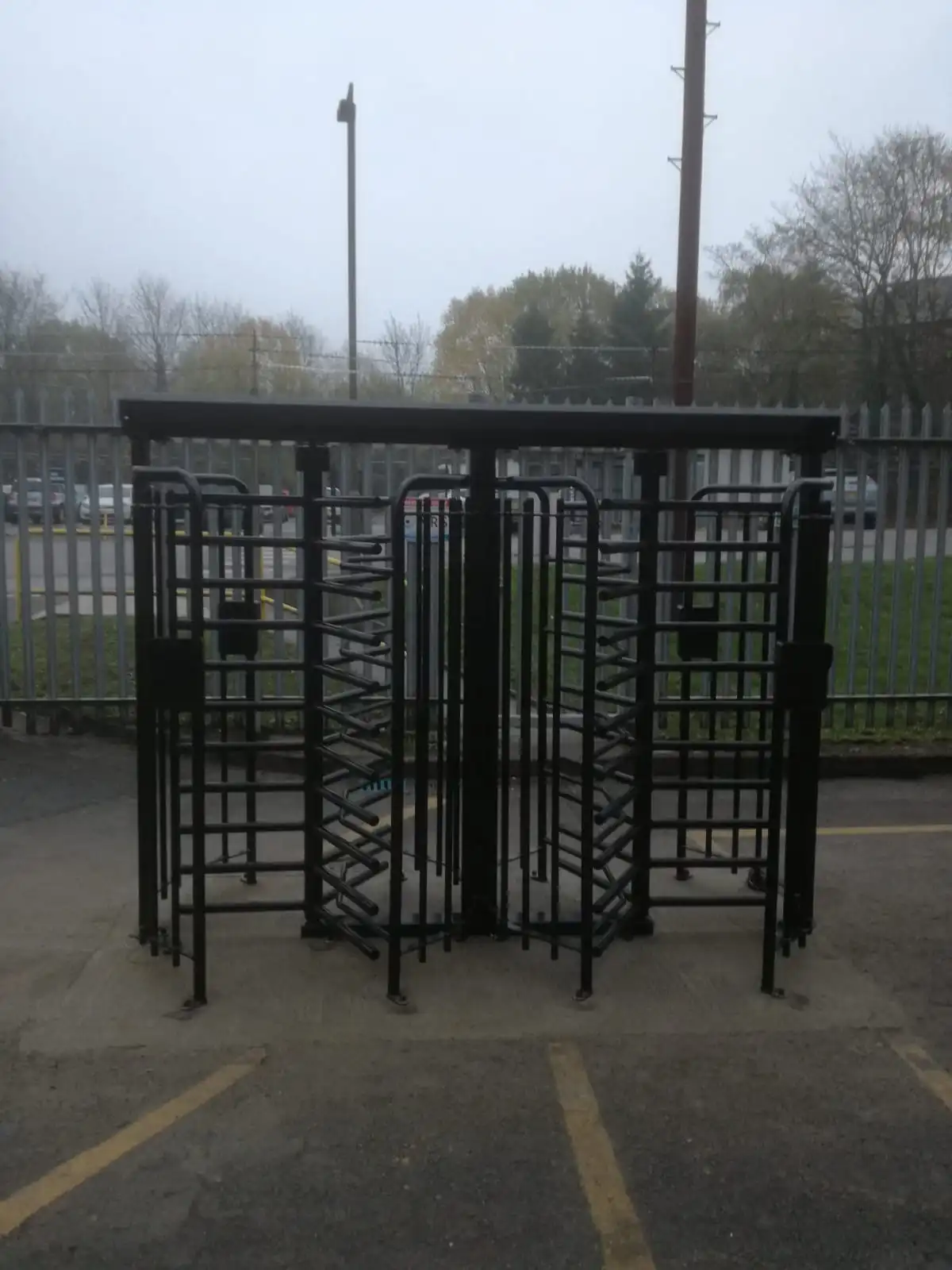

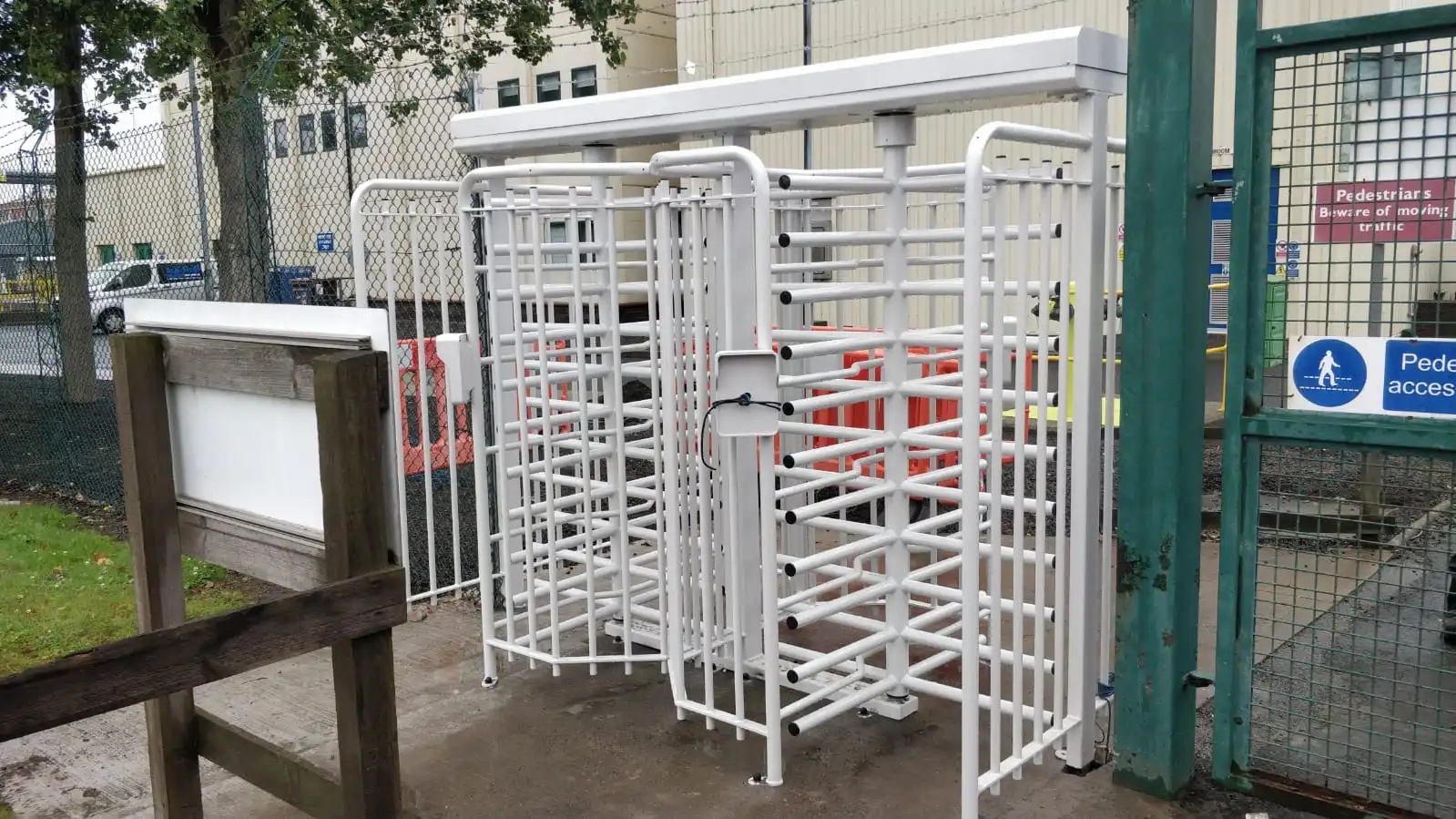

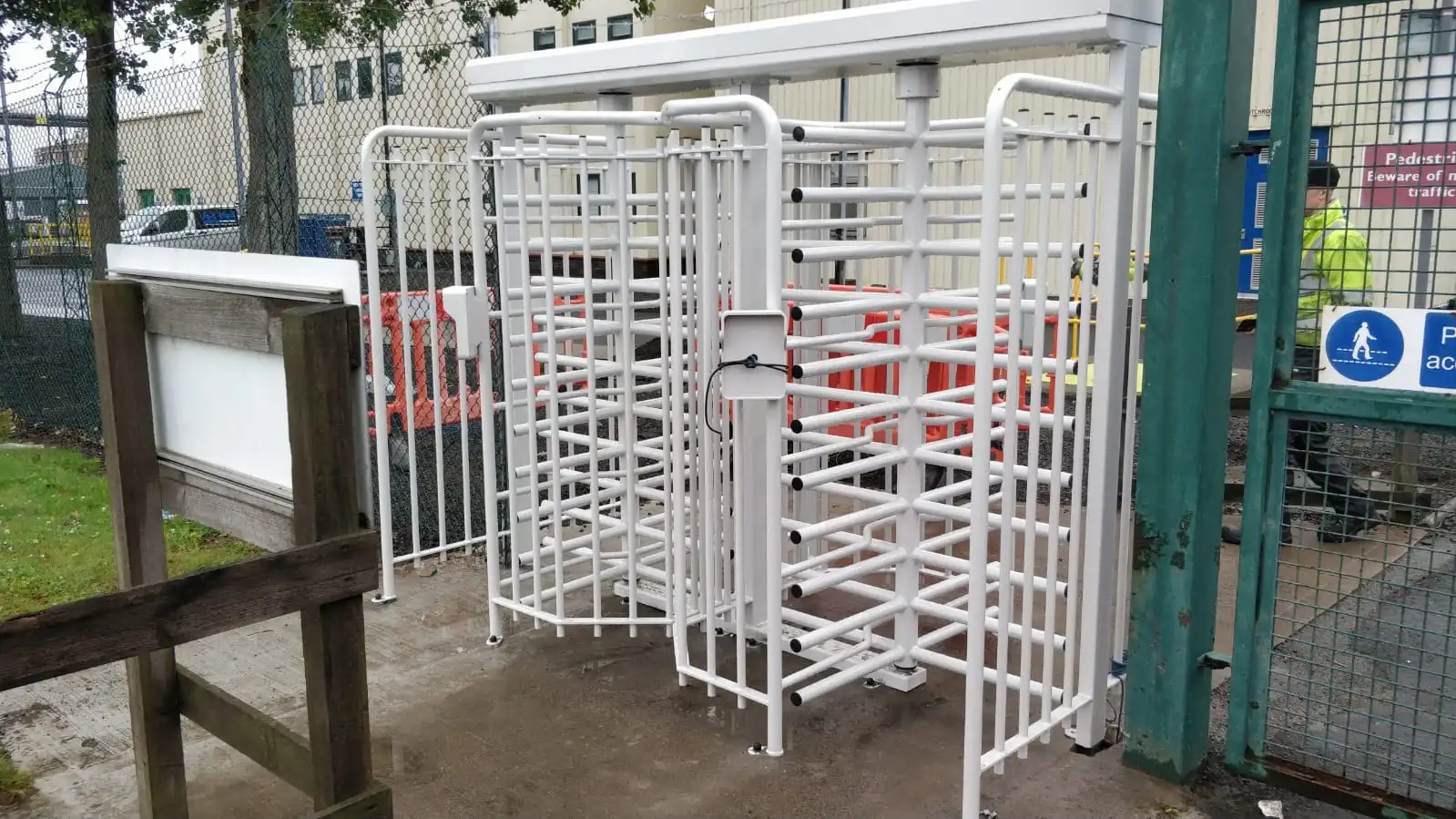

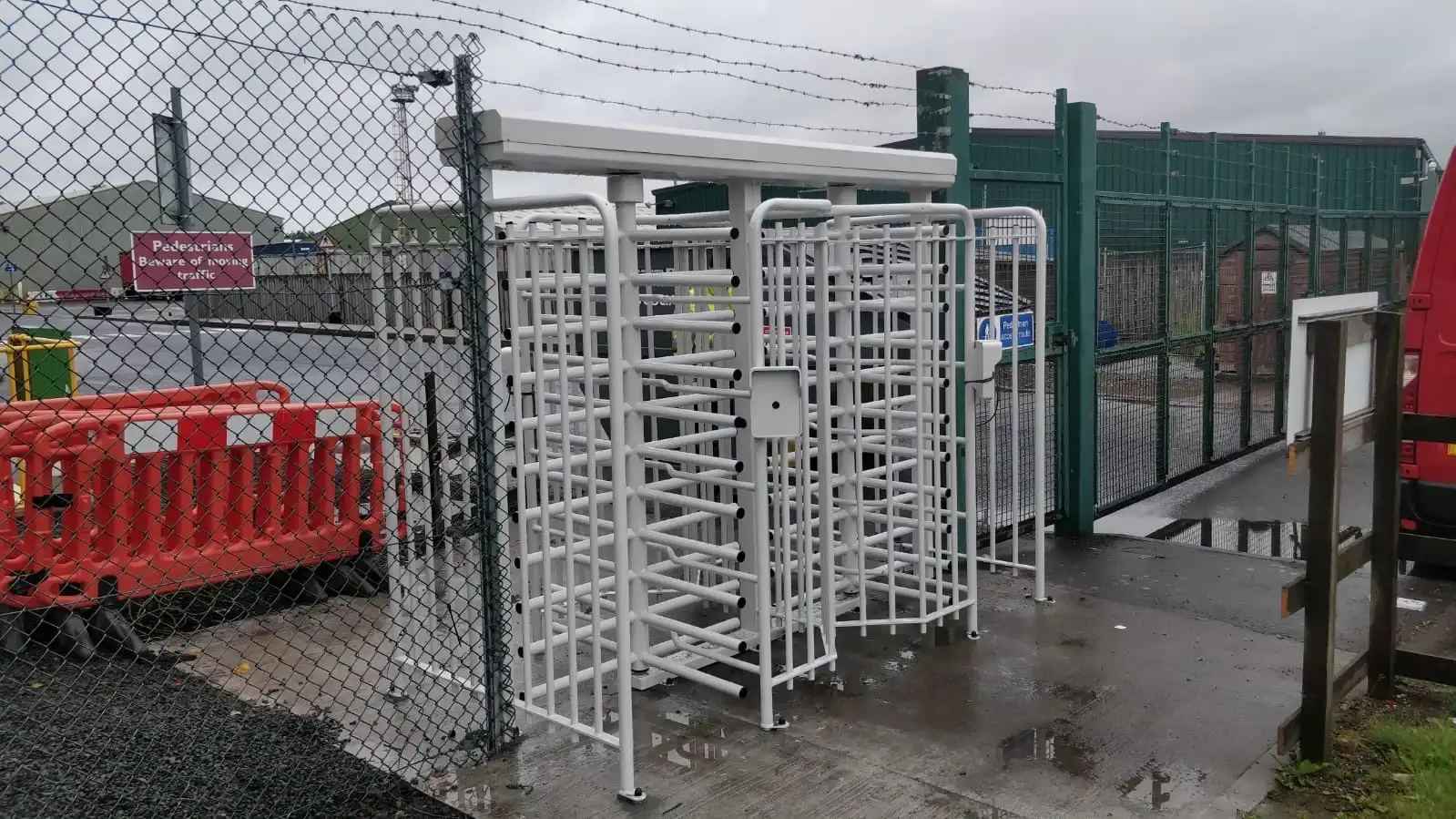

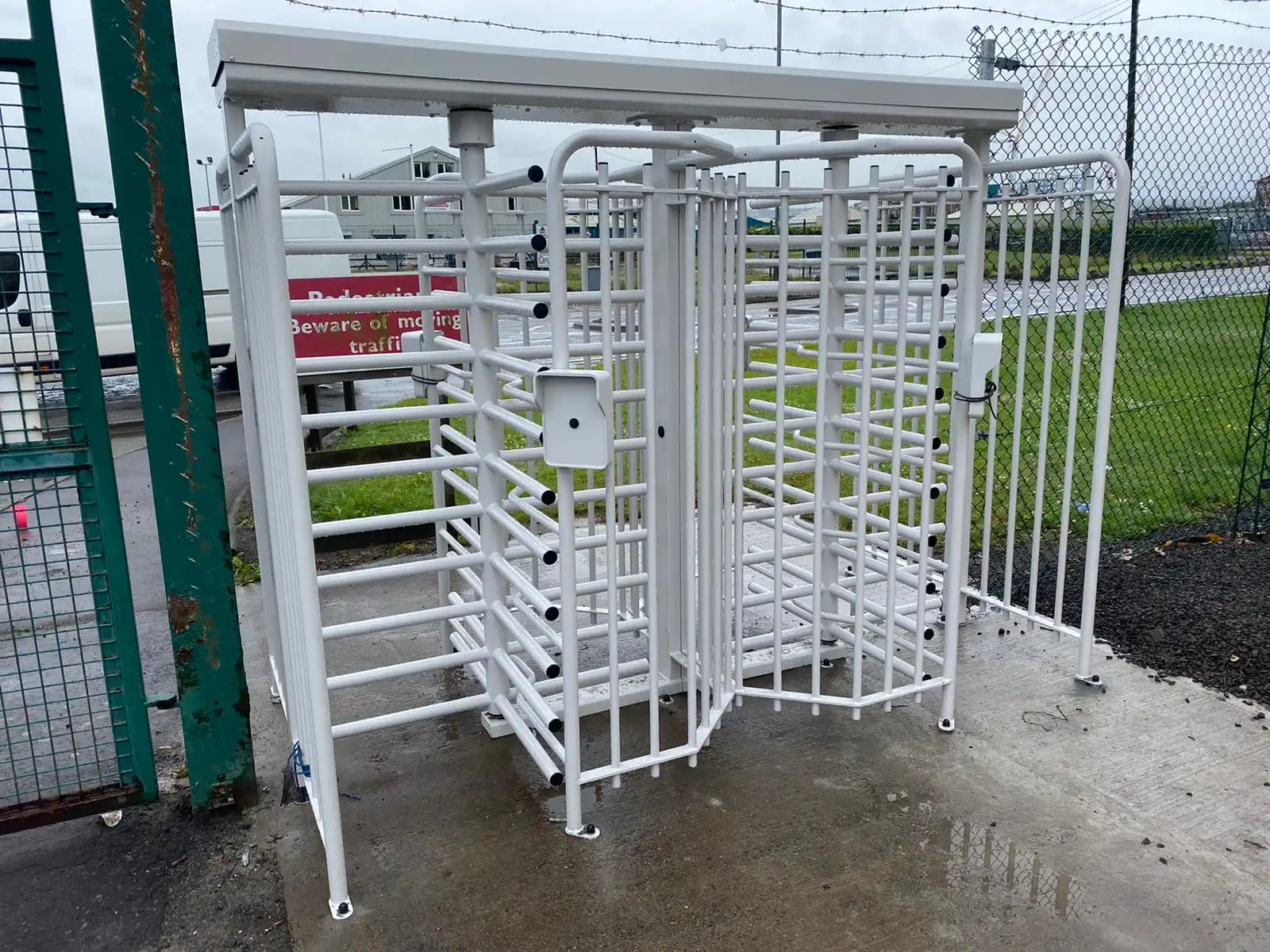

The HA4000DT Double Turnstile is a high-specification full-height access control solution designed to provide secure and reliable pedestrian management in demanding commercial, industrial, and public environments.
The HA4000 full-height turnstile range provides controlled pedestrian access for environments including reception areas, schools, public buildings, military sites, and secure perimeter applications.
Designed as part of a comprehensive access control system, the turnstile delivers reliable operation with low maintenance requirements and straightforward end-user operation.
Manufactured from mild or stainless steel, the HA4000DT is built for long-lasting performance in demanding environments. The unit features a smooth and reliable Locinox head mechanism, with optional configurations including 90° or 120° rotor assemblies, canopies, LED passage indicators, and courtesy lighting.
An integrated anti-trap safety system is included as standard to help prevent users becoming trapped during operation.
The HA4000DT features a PLC controller allowing configuration for fail-safe or fail-secure operation during power failure. The system can be configured for single-direction or bi-directional operation to suit individual site requirements.
Reader plates are fitted as standard, with compatibility available for leading access control systems including Paxton, Nortech, and Ievo. A preconfigured fire alarm input allows free rotation during emergency situations.

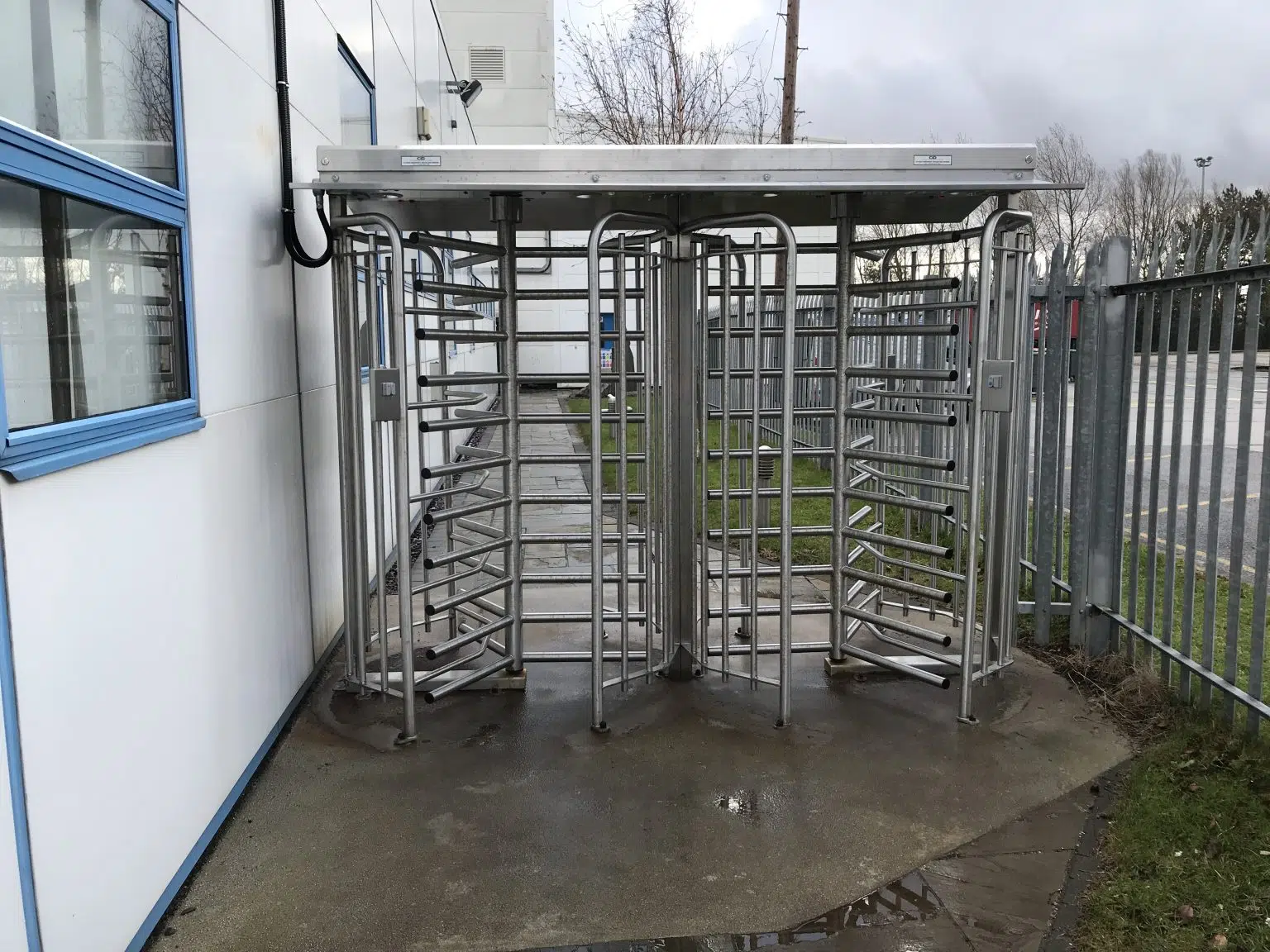

Available in double configuration, the HA4000DT is designed to provide efficient pedestrian control in high-security and high-traffic environments.
The unit is supplied ready to bolt down and commission, continuing a plug-and-play installation approach. Manufactured to order, the system can be customised with different heights, finishes, and optional accessories to meet specific project requirements.
Flow Rate:
15 to 22 Person Per Minute in Single Direction
Duty cycle:
100% Heavy Industrial Usage Suitable for Indoor & Outdoor Usage
Specification:
UKCA & CE Approved
Power requirements:
Single phase 240V, 50Hz, 5 Amps
Colours:
All RAL Colours Available
Dimensions:
Height: 2225mm
Width: 2785mm
Depth: 1280mm
Sizes:
Rotor: 76mm Tube with Bottom Supported Bearing Arms: 42mm Tube with Capped Ends Side Frames: 33mm Tube Welded to Curve Base Plate
Material Construction:
Standard Galvanised
Unit Weight:
230Kg Approx
Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
The HA4000DT Double Turnstile delivers dependable access control performance for demanding applications where security, durability, and ease of integration are essential.
Combining heavy-duty construction, advanced safety features, and broad access control compatibility, it provides a robust long-term solution for managing pedestrian movement across secure sites.
Supports pedestrian flow rates of up to 22 people per minute in a single direction.
Built-in anti-trap safety system helps prevent users becoming trapped during operation.
Compatible with leading access control systems including Paxton, Nortech, and Ievo, with reader plates fitted as standard.
